51-132.025

Active

EAO

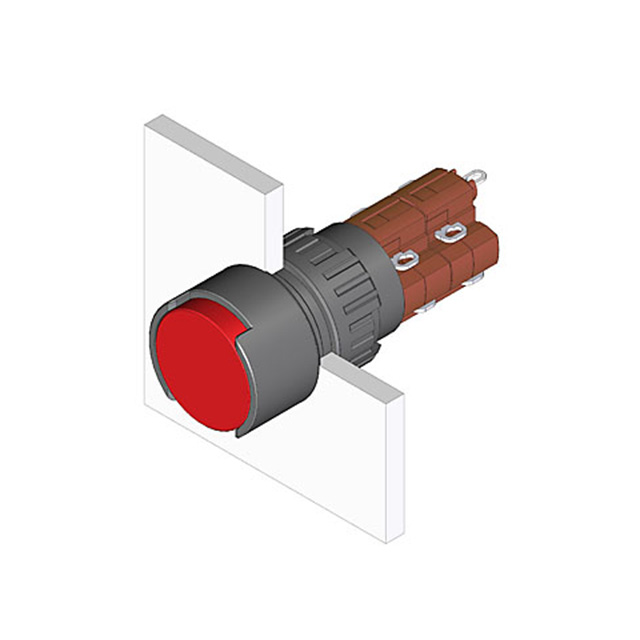

SWITCH PB 4PST-2NO/2NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB 4PST-2NO/2NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-132.025

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

SWITCH PB 4PST-2NO/2NC 5A 250V

Part	Switch Function	Type	Mounting Type	Circuit	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Type	Current Rating (Amps)	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Marking	Mechanical Life
EAO 51-132.025	Off-Mom, On-Mom	Standard	Panel Mount, Front	4PST-2NO/2NC	250 V	55 °C	-25 °C	IP65 - Dust Tight, Water Resistant	Round, Button (Not Included)	5 A	Solder Lug	16 mm	No Marking	2000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
