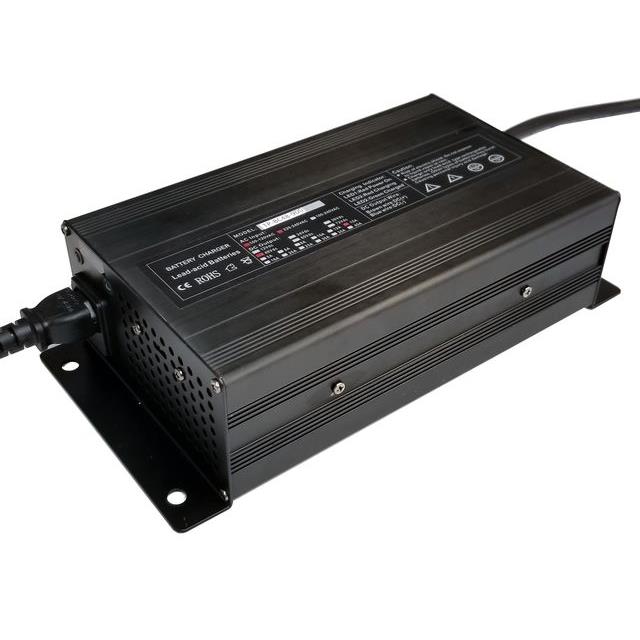

TP-BC48-900

Active

Tycon Systems Inc.

BATT CHARGER DESKTOP 58.8V 15A

Search across all available documentation for this part.

Active

Tycon Systems Inc.

BATT CHARGER DESKTOP 58.8V 15A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 280.35

General part information

Desktop Battery Charger 58.8V 15A 48V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

BATT CHARGER DESKTOP 57.6V 2.15A

Part	Mounting Type	Battery Cell Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Cells	Voltage - Nominal	Termination Style	Approval Agency	Battery Chemistry	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Features	Charge Current - Max [Max]
Tycon Systems Inc. TP-BC48-120	Desktop	48 V	35.56 mm	6.8 "	2.9 in	73.66 mm	172.72 mm	1.4 "	1	57.6 V	Wire Leads	CE, FCC, UL	Lead Acid	120 W	55 °C	-30 ░C	Desktop	240 VAC	100 VAC	LED Indicator
Tycon Systems Inc. TP-BC48-600	Desktop	48 V	76.2 mm	8.5 in	4.75 in	120.65 mm	215.9 mm	3 "	1	58.8 V	Wire Leads	CE	Lead Acid	600 W	40 °C	-10 °C	Desktop	240 VAC	90 VAC	LED Indicator	10 A
Tycon Systems Inc. TP-BC48-900	Desktop	48 V	69.85 mm	10.7 in	5.3 "	134.62 mm	271.78 mm	2.75 in	1	58.8 V	Wire Leads	CE	Lead Acid	900 W	40 °C	-10 °C	Desktop	240 VAC	90 VAC	LED Indicator	15 A
