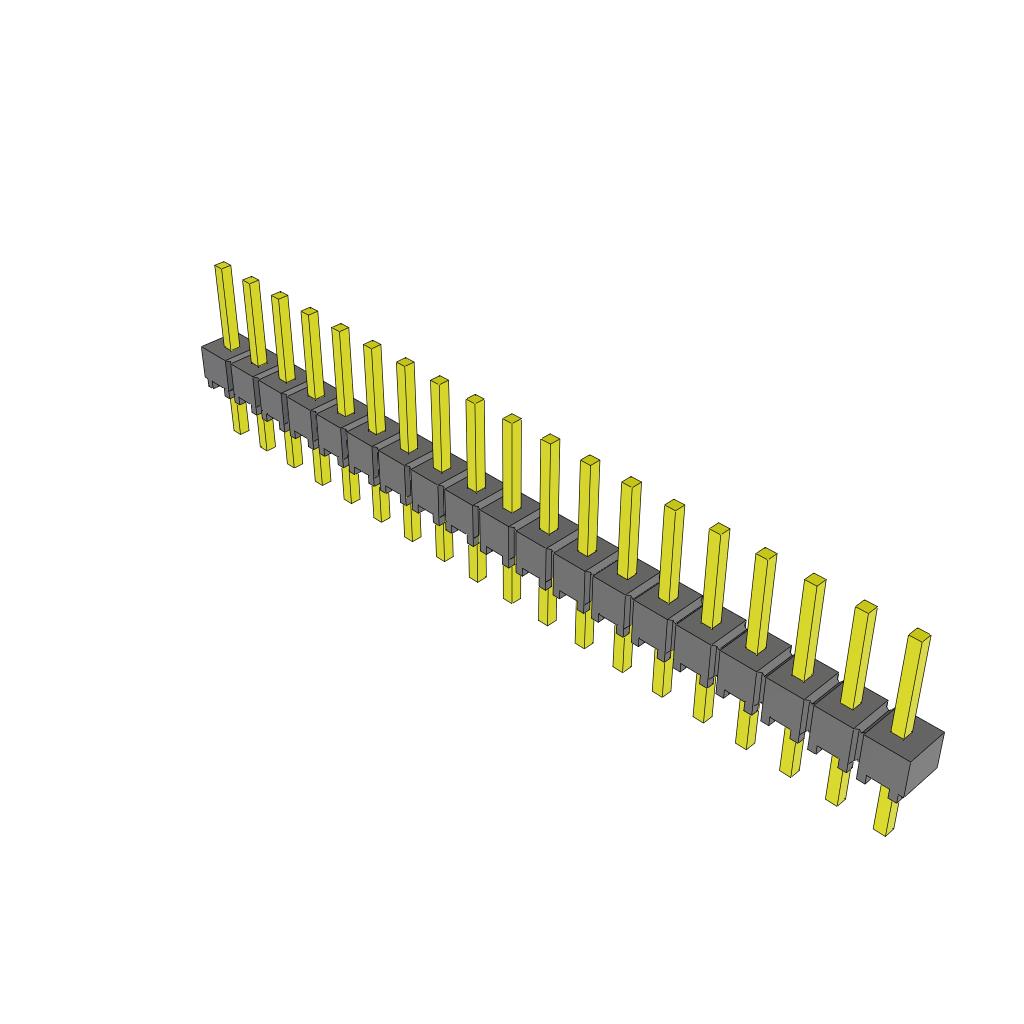

HMTSW-119-07-TM-S-205

Active

Samtec Inc.

CONN HEADER VERT 19POS 2.54MM

Deep-Dive with AI

DocumentsHMTSW Datasheet .100" High-Temp Variable Post Height Terminal Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HMTSW-119-07-TM-S-205

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.21 mm
Contact Length - Mating	0.205 in
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.43 in
Overall Contact Length	10.92 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

HMTSW-119 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Shape	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Contact Type	Contact Length - Post	Contact Length - Post	Style	Number of Positions	Shrouding	Termination	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. HMTSW-119-09-S-D-500-013	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Header	0.73 in	18.54 mm	3 A	Square	Tin	Push-Pull	0.1 in	2.54 mm	2	Male Pin	0.13 in	3.3 mm	Board to Board Cable	38	Unshrouded	Solder	Phosphor Bronze	0.5 in	12.7 mm	Natural	UL94 V-0	Gold	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole
Samtec Inc. HMTSW-119-07-T-S-205			Liquid Crystal Polymer (LCP)			Header	0.43 in	10.92 mm	3 A	Square	Tin	Push-Pull	0.1 in	2.54 mm	1	Male Pin			Board to Board Cable	19	Unshrouded	Solder	Phosphor Bronze			Natural	UL94 V-0		0.1 in	2.54 mm	-55 °C	105 ░C	Through Hole	All	5.21 mm	0.205 in	3.18 mm	0.125 in
Samtec Inc. HMTSW-119-07-G-D-240	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Header	0.43 in	10.92 mm	3 A	Square	Gold	Push-Pull	0.1 in	2.54 mm	2	Male Pin	0.09 "	2.29 mm	Board to Board Cable	38	Unshrouded	Solder	Phosphor Bronze	0.24 in		Natural	UL94 V-0	Gold	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	All	6.1 mm				3 µin	0.076 µm
Samtec Inc. HMTSW-119-07-TM-S-205			Liquid Crystal Polymer (LCP)			Header	0.43 in	10.92 mm	3 A	Square	Tin	Push-Pull	0.1 in	2.54 mm	1	Male Pin			Board to Board Cable	19	Unshrouded	Solder	Phosphor Bronze			Natural	UL94 V-0		0.1 in	2.54 mm	-55 °C	105 ░C	Through Hole	All	5.21 mm	0.205 in	3.18 mm	0.125 in
Samtec Inc. HMTSW-119-09-G-T-415-RA	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Header			3 A	Square	Gold	Push-Pull	0.319 in	8.1 mm	3	Male Pin			Board to Board Cable	57	Unshrouded	Solder	Phosphor Bronze			Natural	UL94 V-0	Gold	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole Right Angle	All	10.54 mm	0.415 in			3 µin	0.076 µm
