KNH1-HEX5S2----

Active

Essentra Access Solutions

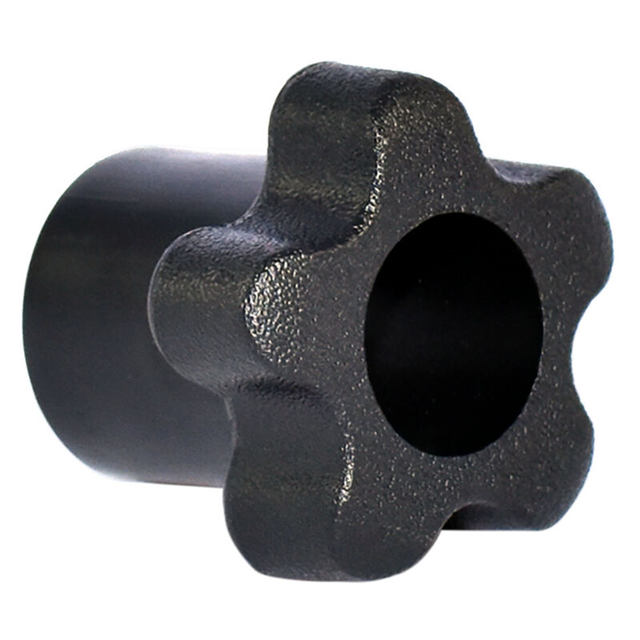

SELF-ASSEMBLY STAR KNOB 1.380 IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

SELF-ASSEMBLY STAR KNOB 1.380 IN

Technical Specifications

Parameters and characteristics for this part

Part	Material	Indicator [custom]	Color	Diameter [diameter]	Diameter [diameter]	Height [z]	Height [z]	Type	Style	Shaft Size
Essentra Access Solutions KNH1-HEX3P4----	Polypropylene	No Indicator	Black	44.2 mm	1.74 in	1.05 in	26.67 mm	3 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEXTH1----	Polypropylene	No Indicator	Black	32 mm	1.26 in	1 in	25.4 mm	2 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEXRT5----	Polypropylene	No Indicator	Black	51.31 mm	2.02 in	1.09 in	27.69 mm	3 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEXF6-----	Polypropylene	No Indicator	Black	60.45 mm	2.38 in	1.23 "	31.24 mm	Fluted	Clamping	0.25 in
Essentra Access Solutions KNH1-HEX5S2----	Polypropylene	No Indicator	Black	33.78 mm	1.33 in	1.18 in	29.97 mm	5 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEX4P4----	Polypropylene	No Indicator	Black	44.45 mm	1.75 in	1.04 in	26.42 mm	4 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEX5SA----	Polypropylene	No Indicator	Black	57.15 mm	2.25 in	0.95 in	24.13 mm	5 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEX5S3A---	Polypropylene	No Indicator	Black	44.45 mm	1.75 in	0.98 in	24.89 mm	5 Arm	Clamping	0.25 in
Essentra Access Solutions KNH1-HEXF2-----	Polypropylene	No Indicator	Black	35.05 mm	1.38 in	0.52 in	13.21 mm	Fluted	Clamping	0.25 in
Essentra Access Solutions KNH1-HEXT5-----	Polypropylene	No Indicator	Black	50.8 mm	2 in	1.03 in	26.16 mm	2 Arm		0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Arm Knob 1/4" Shaft with No Indicator Polypropylene Black
