Technical Specifications
Parameters and characteristics for this part
| Specification | PAM8014AZR |
|---|---|
| Features | Depop, Short-Circuit and Thermal Protection, Shutdown |
| Max Output Power x Channels @ Load | 4 Ohm, 3.2 W, 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Output Type | 1-Channel (Mono) |
| Package / Case | WLBGA, 9-UFBGA |
| Supplier Device Package | U-WLB1313-9 |
| Type | Class D |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.45 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.48 | |||
| 25 | $ 0.45 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
| 6000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 30000 | $ 0.16 | |||
Description
General part information

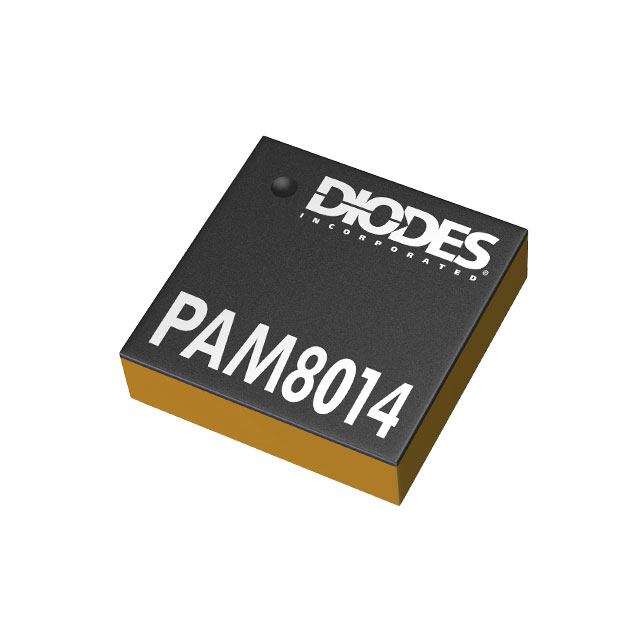

PAM8014 Series
The PAM8014 is a 3.2W mono filter-less Class-D amplifier with high PSRR and differential input that eliminate noise and RFrectification.
