3-829868-5

TE Connectivity AMP Connectors

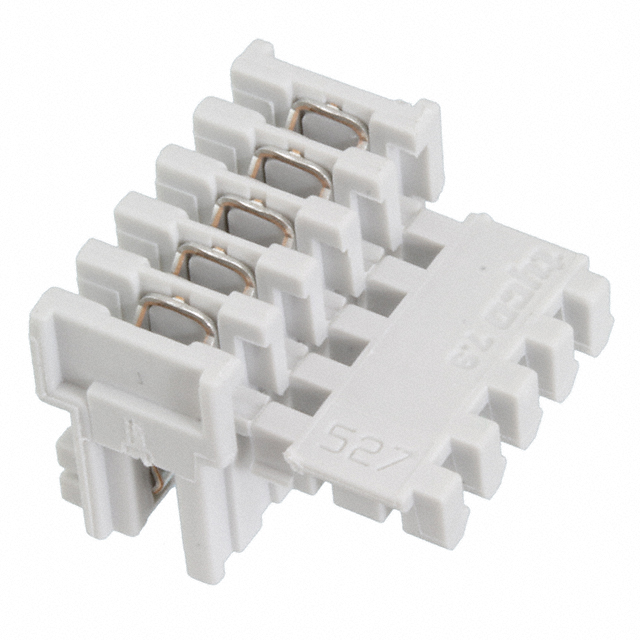

CONN RCPT 5POS IDC 22AWG TIN

Search across all available documentation for this part.

TE Connectivity AMP Connectors

CONN RCPT 5POS IDC 22AWG TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

6X10P FEDERLEI 2,5

Part	Mounting Type	Color	Number of Rows	Cable Termination	Contact Finish	Wire Type	Connector Type	Features	Contact Type	Wire Gauge	Number of Positions	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 3-829868-0	Free Hanging (In-Line)	Gray	1	IDC	Tin	Discrete	Receptacle	Closed End	Female Socket	22 AWG	10	0.098 in	2.5 mm
TE Connectivity AMP Connectors 3-829868-6	Free Hanging (In-Line)	Gray	1	IDC	Tin	Discrete	Receptacle	Mates to PCB	Female Socket	22 AWG	6	0.098 in	2.5 mm
TE Connectivity AMP Connectors 3-829868-5	Free Hanging (In-Line)	Gray	1	IDC	Tin	Discrete	Receptacle	Mates to PCB	Female Socket	22 AWG		0.098 in	2.5 mm
TE Connectivity AMP Connectors 3-829868-8	Free Hanging (In-Line)	Gray	1	IDC	Tin	Discrete	Receptacle	Mates to PCB	Female Socket	22 AWG	8	0.098 in	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Rectangular Receptacle Connector IDC Tin 22 AWG

Technical documentation and resources

No documents available
