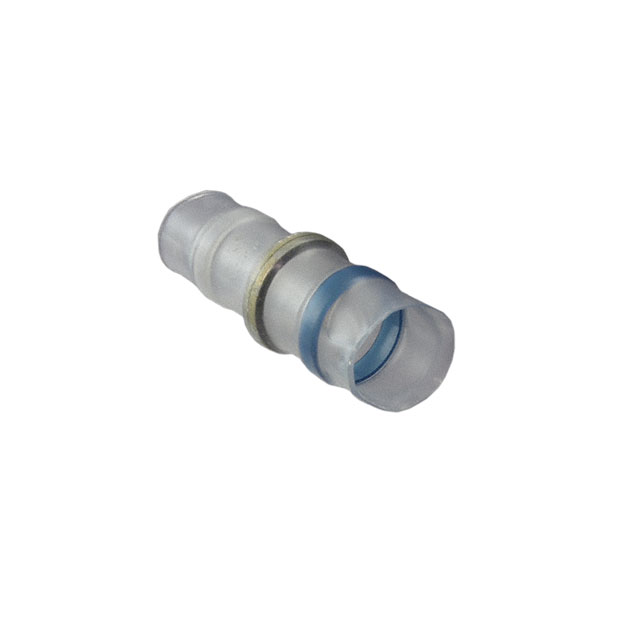

B-155-09

Active

TE Connectivity Raychem Cable Protection

B-155-09

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

B-155-09

Technical Specifications

Parameters and characteristics for this part

Part	Color	Diameter	Diameter	Length [x]	Length [x]	Type	Length	Length	Features	Diameter [diameter]	Length	Diameter [diameter]
TE Connectivity Raychem Cable Protection B-155-11	Clear	0.425 " 0.453 "	10.8 mm 11.51 mm	35.52 mm	1.398 "	Wire to Wire
TE Connectivity Raychem Cable Protection B-155-03-35-22-5	Clear	0.098 in 0.118 in	2.49 mm 3 mm			Wire to Wire	24.5 mm	0.964 in	Pre-Installed Lead Wire
TE Connectivity Raychem Cable Protection B-155-05-100-18-9	Clear		4.29 mm 4.8 mm			Wire to Wire			Pre-Installed Lead Wire	0.169 " 0.189 "
TE Connectivity Raychem Cable Protection B-155-09	Clear	0.343 " 0.362 "	8.71 mm 9.19 mm	35.52 mm	1.398 "	Wire to Wire
TE Connectivity Raychem Cable Protection B-155-07-100-18-9	Clear					Wire to Wire	32.5 mm		Pre-Installed Lead Wire	0.252 in 0.287 in	1.279 in	6.4 mm 7.29 mm
TE Connectivity Raychem Cable Protection B-155-2003	Transparent - Clear					Wire to Wire/Pin	27 mm	1.063 in	2 Part
TE Connectivity Raychem Cable Protection B-155-33	Clear					Wire to Wire	0.08 m	3.15 "		1.299 " 1.38 in		32.99 mm 35.05 mm
TE Connectivity Raychem Cable Protection B-155-4174-35-22-5/9	Clear			33 mm	1.299 in	Wire to Wire			Pre-Installed Lead Wire	0.18 in		4.57 mm
TE Connectivity Raychem Cable Protection B-155-00-01	Clear	0.67 in 0.75 "	17.02 mm 19.05 mm			Wire to Connector	27 mm	1.063 in
TE Connectivity Raychem Cable Protection B-155-23	Clear	0.885 in 0.964 in	22.48 mm 24.49 mm			Wire to Wire	0.08 m	3.15 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9.2 mm, [.362 in] Expanded Inside, Shrinks To .177 in, SolderSleeve Shield Terminators
