000-36250

Active

AMPHENOL RF

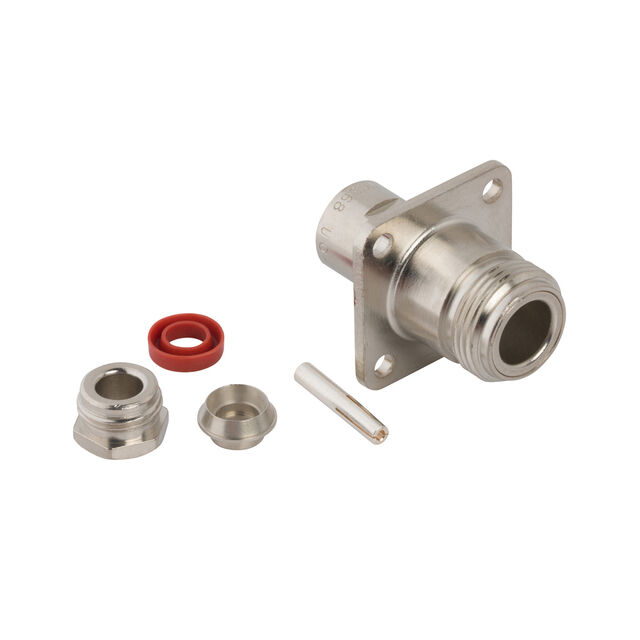

CONN N JACK STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

000-36250

Active

AMPHENOL RF

CONN N JACK STR 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 66.67

Description

General part information

000-36 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-36250	000-36 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, RG-55
Cable Group	-	142 - 400
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Silver	Gold, Silver
Connector Style	N Type	TNC, BNC, N Type
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Frequency - Max	-	1 - 11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Shield Termination	Clamp	Crimp, Clamp
Voltage Rating	-	500 V

000-36 Series

CONN TNC PLUG STR 50 OHM CRIMP

Part	Mounting Type	Body Finish	Number of Ports	Housing Color	Impedance	Mating Cycles	Includes	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Contact Termination	Connector Style	Body Material	Center Contact Plating	Connector Type	Cable Group	Dielectric Material	Frequency - Max [Max]	Center Contact Material	Insertion Loss	Cable Group	Fastening Type	Mounting Feature
AMPHENOL RF 000-36825	Free Hanging (In-Line)	Nickel	1	Silver	50 Ohms	500	1 Connector, 1 Contact, 1 Ferrule	500 V	-65 ░C	165 °C	Crimp	Crimp	TNC	Brass	Gold	Male Pin, Plug	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Polytetrafluoroethylene (PTFE)	11 GHz	Brass
AMPHENOL RF 000-36875	Free Hanging (In-Line)	Nickel	1	Silver	50 Ohms	500	1 Connector, 1 Contact, 1 Ferrule	500 V	-65 ░C	165 °C	Crimp	Crimp, Solder	BNC	Brass	Gold	Male Pin, Plug	RG-55	Polytetrafluoroethylene (PTFE)	1 GHz	Brass	0.2 dB	142, 223, 400	Bayonet Lock
AMPHENOL RF 000-36250		Nickel	1	Silver	50 Ohms	500					Clamp	Solder	N Type	Brass	Silver	Female Socket, Jack	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Polytetrafluoroethylene (PTFE)		Beryllium Copper				Flange
AMPHENOL RF 000-36800	Free Hanging (In-Line)	Nickel	1	Silver	50 Ohms	500	1 Connector, 1 Contact, 1 Ferrule	500 V	-65 ░C	165 °C	Crimp	Crimp	BNC	Brass	Gold	Female Socket, Jack	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Polytetrafluoroethylene (PTFE)	4 GHz	Phosphor Bronze	0.2 dB		Bayonet Lock
AMPHENOL RF 000-36800-RFX	Free Hanging (In-Line)	Nickel	1	Silver	50 Ohms	500		500 V	-65 ░C	165 °C	Crimp	Crimp	BNC	Brass	Gold	Female Socket, Jack	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Polytetrafluoroethylene (PTFE)	4 GHz	Phosphor Bronze	0.2 dB		Bayonet Lock
