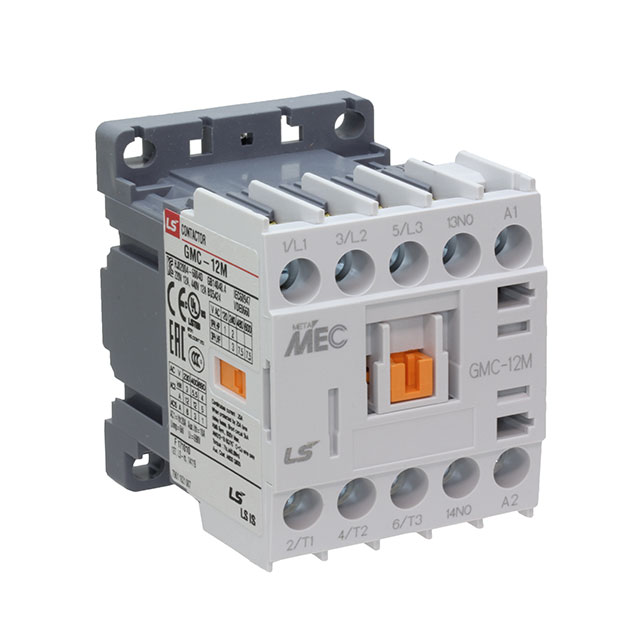

GMC-12M-10-AC120V
ActiveAltech Corporation
MINI CONTACTOR12A380440V 3P1NO12
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GMC-12M-10-AC120V
ActiveAltech Corporation
MINI CONTACTOR12A380440V 3P1NO12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GMC-12M-10-AC120V |
|---|---|
| Coil Power | 2 W |
| Coil Voltage | 120 VAC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 12 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -5 °C |
| Release Time | 35 ms |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.30 | |
| 10 | $ 28.79 | |||
| 25 | $ 27.27 | |||
| 50 | $ 25.75 | |||
| 100 | $ 24.24 | |||
| 250 | $ 22.73 | |||
Description
General part information
GMC-12 Series
MINI CONTACTOR12A380440V 3P1NO12
