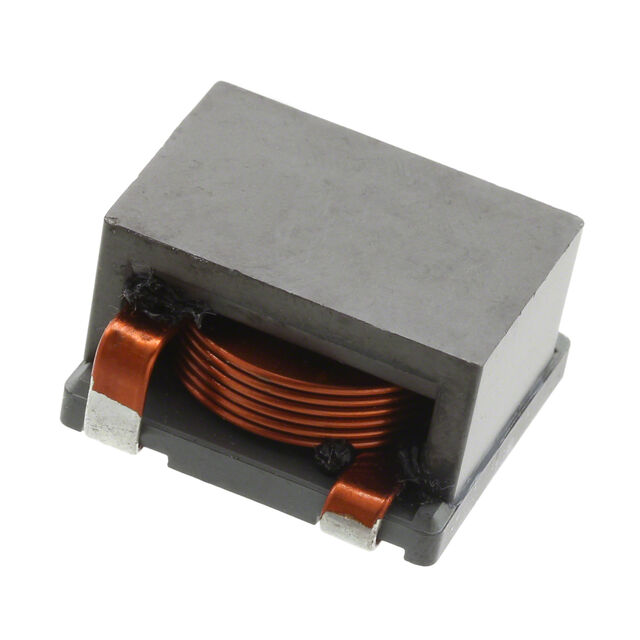

HA65A-251533RLF

Unknown

TT Electronics/BI Magnetics

FIXED IND 33UH 2.6 MOHM SMD

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 33UH 2.6 MOHM SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

33 µH Unshielded Wirewound Inductor 2.6mOhm Max Nonstandard

Technical documentation and resources

Parameters and characteristics commom to parts in this series

FIXED IND 22UH 2.6 MOHM SMD

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Tolerance	Ratings	Inductance Frequency - Test	Frequency - Self Resonant	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Shielding	Inductance
TT Electronics/BI Magnetics HA65A-251522RLF	15.5 mm	0.61 "	Nonstandard	10 %	AEC-Q200	100 kHz	9 MHz	Wirewound	26.5 mm	1.043 "	26.5 mm	1.043 in	2.6 mOhm	Surface Mount	-40 °C	155 °C	22 A	Unshielded	22 µH
TT Electronics/BI Magnetics HA65A-251533RLF	15.5 mm	0.61 "	Nonstandard	10 %	AEC-Q200	100 kHz	6 MHz	Wirewound	26.5 mm	1.043 "	26.5 mm	1.043 in	2.6 mOhm	Surface Mount	-40 °C	155 °C	10.3 A	Unshielded	33 µH
TT Electronics/BI Magnetics HA65A-25154R7LF	15.5 mm	0.61 "	Nonstandard	10 %	AEC-Q200	100 kHz	21 MHz	Wirewound	26.5 mm	1.043 "	26.5 mm	1.043 in	2.6 mOhm	Surface Mount	-40 °C	155 °C	61 A	Unshielded	4.7 ÁH
TT Electronics/BI Magnetics HA65A-25153R3LF	15.5 mm	0.61 "	Nonstandard	10 %	AEC-Q200	100 kHz	24 MHz	Wirewound	26.5 mm	1.043 "	26.5 mm	1.043 in	2.6 mOhm	Surface Mount	-40 °C	155 °C	87 A	Unshielded	3.3 µH
