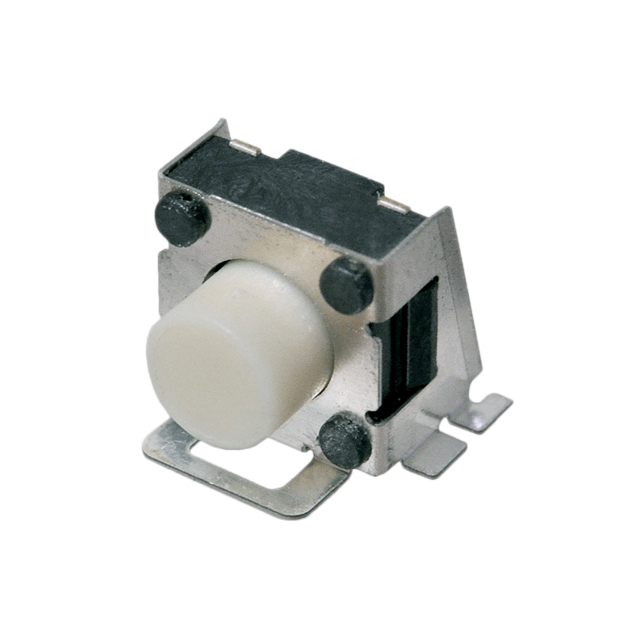

TL3360AF185Q

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.85N

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.85N

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Actuator Length, Right Angle	Actuator Type	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Switch Travel	Mounting Type	Contact Rating @ Voltage	Actuator Orientation	Switch Function	Outline [y]	Outline [x]	Mechanical Life	Actuator Length, Right Angle [x]
E-Switch TL3360DF260Q	260 gf	8.72 mm	Standard	Non-Illuminated	70 °C	-25 °C	Gull Wing	SPST-NO	0.15 mm	Surface Mount Right Angle	0.05 A 12 VDC	Side Actuated	Off-Mom	6.4 mm	7.77 mm	200000 Cycles
E-Switch TL3360DF185Q	185 gf	8.72 mm	Standard	Non-Illuminated	70 °C	-25 °C	Gull Wing	SPST-NO	0.15 mm	Surface Mount Right Angle	0.05 A 12 VDC	Side Actuated	Off-Mom	6.4 mm	7.77 mm	200000 Cycles
E-Switch TL3360CF260Q	260 gf		Standard	Non-Illuminated	70 °C	-25 °C	Gull Wing	SPST-NO	0.15 mm	Surface Mount Right Angle	0.05 A 12 VDC	Side Actuated	Off-Mom	6.4 mm	7.77 mm	200000 Cycles	8.37 mm
E-Switch TL3360AF260Q	260 gf	6.67 mm	Standard	Non-Illuminated	70 °C	-25 °C	Gull Wing	SPST-NO	0.15 mm	Surface Mount Right Angle	0.05 A 12 VDC	Side Actuated	Off-Mom	6.4 mm	7.77 mm	200000 Cycles
E-Switch TL3360AF185Q	185 gf	6.67 mm	Standard	Non-Illuminated	70 °C	-25 °C	Gull Wing	SPST-NO	0.15 mm	Surface Mount Right Angle	0.05 A 12 VDC	Side Actuated	Off-Mom	6.4 mm	7.77 mm	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
