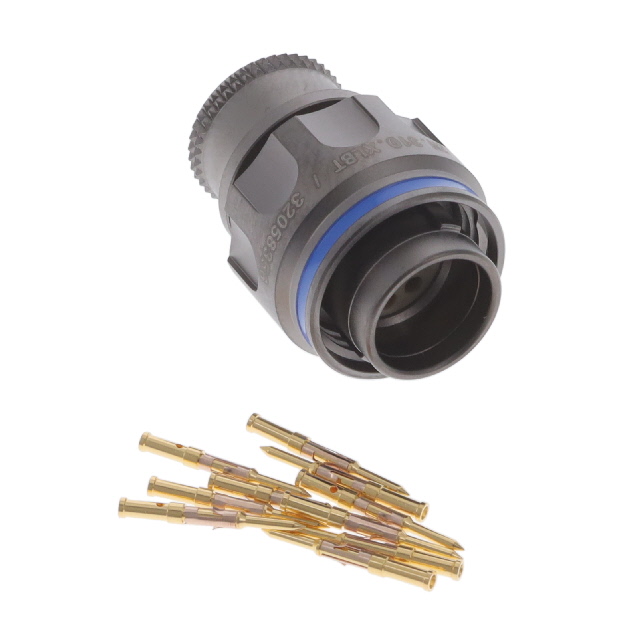

FGN.2M.310.XLBT

Active

LEMO

CONN PLUG MALE 10POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM Series Catalog Datasheet

FGN.2M.310.XLBT

Active

LEMO

CONN PLUG MALE 10POS GOLD CRIMP

Deep-Dive with AI

DocumentsM Series Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 93.77
		10	$ 86.04
		25	$ 82.73
		50	$ 79.98
		100	$ 75.56

Description

General part information

FGN.2M Series

10 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

M Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.2M.310.XLBT	FGN.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening	-	13 mm
Cable Opening	-	6.5 mm
Cable Opening	-	0.512 in
Cable Opening	-	0.256 in
Cable Opening [custom]	0.512 in	0.512 in
Cable Opening [custom]	13 mm	13 mm
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	8 A	4 - 23 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	6 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	310	306 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGN.2M Series

CONN PLUG MALE 10POS GOLD CRIMP

Part	Contact Finish - Mating	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection	Shell Finish	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Mounting Type	Connector Type	Current Rating (Amps)	Shielding	Color	Features	Insert Material	Shell Size - Insert	Applications	Orientation	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FGN.2M.310.XLCM	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	10	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	8 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	310	Aerospace, Automotive, Aviation, Military	N
LEMO FGN.2M.319.XLC	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	19	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	4 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	319	Aerospace, Automotive, Aviation, Military	N	0.512 in	13 mm
LEMO FGN.2M.310.XLBT	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	10	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	8 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	310	Aerospace, Automotive, Aviation, Military	N	0.512 in	13 mm
LEMO FGN.2M.310.XRC8	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	10	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	6 A, 23 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	310	Aerospace, Automotive, Aviation, Military	N			13 mm	6.5 mm	0.512 in	0.256 in
LEMO FGN.2M.308.XRCT6	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	8	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	7 A, 23 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	308	Aerospace, Automotive, Aviation, Military	N			13 mm	6.5 mm	0.512 in	0.256 in
LEMO FGN.2M.319.XLCM	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	19	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	4 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	319	Aerospace, Automotive, Aviation, Military	N
LEMO FGN.2M.312.XLCT	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	12	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	7 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	312	Aerospace, Automotive, Aviation, Military	N	0.512 in	13 mm
LEMO FGN.2M.312.XLCM	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	12	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	7 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	312	Aerospace, Automotive, Aviation, Military	N
LEMO FGN.2M.310.XLCT	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	10	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	8 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	310	Aerospace, Automotive, Aviation, Military	N	0.512 in	13 mm
LEMO FGN.2M.308.XLCT	Gold	Brass	Crimp	-55 °C	200 °C	Metal	IP68 - Dust Tight, Waterproof	Nickel	8	1 µm	39.4 µin	Aluminum Alloy	Free Hanging (In-Line)	Male Pins, Plug	10 A	Shielded	Gray	Coupling Nut	Polyetheretherketone (PEEK)	308	Aerospace, Automotive, Aviation, Military	N	0.512 in	13 mm
