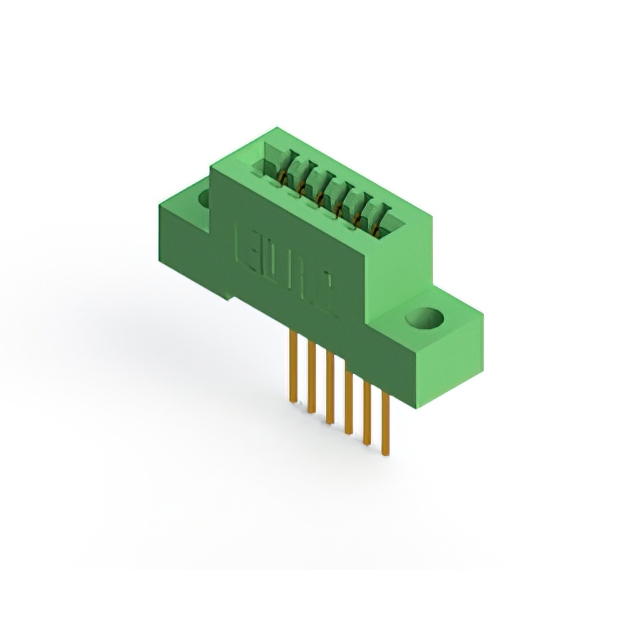

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-006-541-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 6 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-006-541-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
342-006 Series
| Part | Contact Type | Termination | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Material - Insulation | Number of Positions | Number of Rows | Card Type | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Finish | Read Out | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Solder | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C |
EDAC Inc. | Cantilever | Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | ||
EDAC Inc. | Cantilever | Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C |
EDAC Inc. | Cantilever | Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | ||
EDAC Inc. | Cantilever | Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C |
EDAC Inc. | Cantilever | Solder Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C |
EDAC Inc. | Cantilever | Solder | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | ||
EDAC Inc. | Cantilever | Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | ||
EDAC Inc. | Cantilever | Wire Wrap | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C |
EDAC Inc. | Cantilever | Solder | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 6 | 1 | Non Specified - Single Edge | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 6 | 2.54 mm | 0.1 in | Gold | Single | Copper Alloy | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C |
