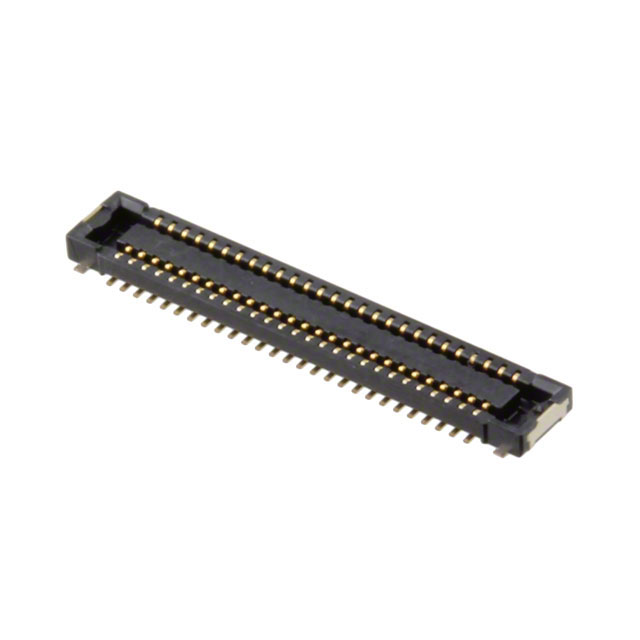

AXE554127

Active

Panasonic Electric Works

CONN SOCKET 54POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 54POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE554127

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	54
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Positions
Panasonic Electric Works AXE554127	0.016 in	0.4 mm	2	Gold	Solder Retention	Surface Mount	0.8 mm 1 mm	0.03 in	0.75 mm	Socket Center Strip Contacts	54

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 3.02

General part information

54 Position Connector Socket, Center Strip Contacts Surface Mount Gold
