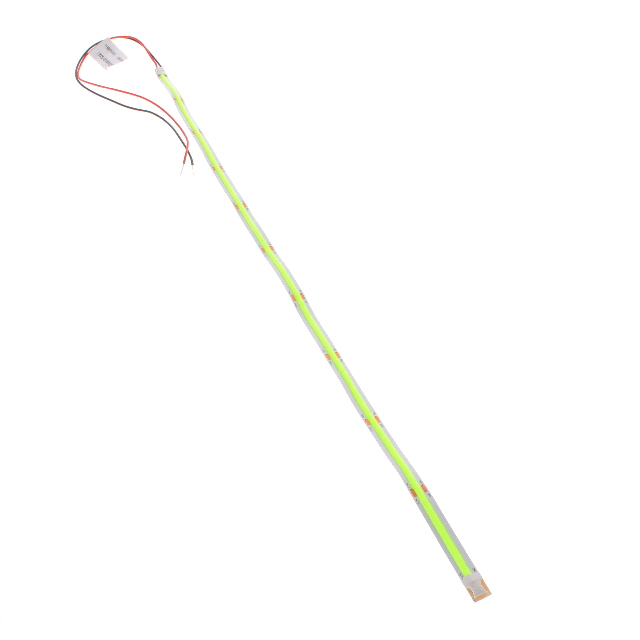

AB-FO024GN-02012-XA1

Active

American Bright Optoelectronics Corporation

LED COB AB-FO GREEN LNR STRIP

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED COB AB-FO GREEN LNR STRIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-FO024GN-02012-XA1	AB-FO024 Series

CCT (K)	-	2700 K
Color	Green	Green, Amber, White, Warm
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	-	90
Current - Max [Max]	250 mA	250 mA
Current - Test	250 mA	250 mA
Features	IP65	IP65
Height [z]	2.2 mm	2.2 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	54 lm/W	54 - 100 lm/W
Luminous Flux @ Current/Temperature	600 lm	335 - 600 lm
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	150 °	150 °
Voltage - Forward (Vf) (Typ)	24 V	24 V
Wavelength	590 nm	525 - 590 nm

LED COB AB-FO GREEN LNR STRIP

Part	Lumens/Watt @ Current - Test	Height [z]	Type	Color	Luminous Flux @ Current/Temperature	Lens Type	Viewing Angle	Wavelength	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Features	Current - Max [Max]	CCT (K)	CRI (Color Rendering Index)
American Bright Optoelectronics Corporation AB-FO024GN-02012-XA1	54 lm/W	2.2 mm	Chip On Board (COB)	Green	600 lm	Flat	150 °	590 nm	24 V	250 mA	Flexible, Linear Light Strip	IP65	250 mA
American Bright Optoelectronics Corporation AB-FO024AM-02012-XA1	100 lm/W	2.2 mm	Chip On Board (COB)	Amber	335 lm	Flat	150 °	525 nm	24 V	250 mA	Flexible, Linear Light Strip	IP65	250 mA
American Bright Optoelectronics Corporation AB-FO02427-02012-9A1	70 lm/W	2.2 mm	Chip On Board (COB)	Warm, White	447 lm	Flat	150 °		24 V	250 mA	Flexible, Linear Light Strip	IP65	250 mA	2700 K	90

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) AB-FO Green Linear Light Strip, Flexible
