845-094-525-808
ActiveEDAC Inc.

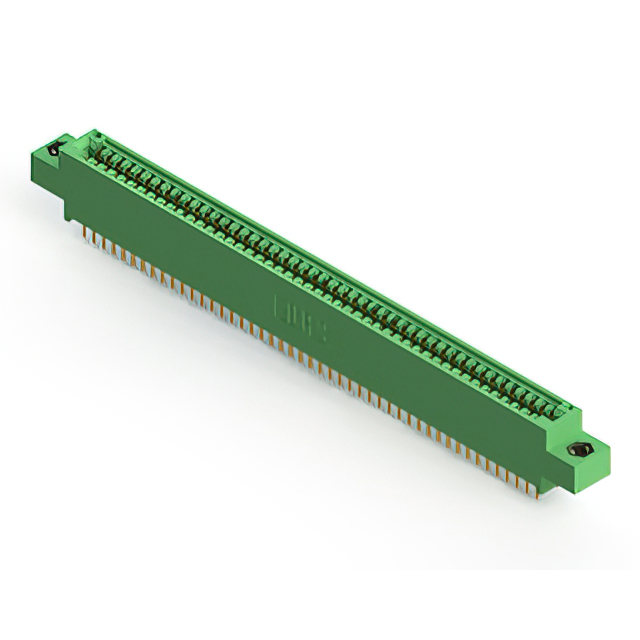

CONN EDGE DUAL FMALE 94POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-094-525-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 94POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-094-525-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 94 |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-094 Series
...
| Part | Flange Feature | Number of Positions | Card Type | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Gender | Mounting Type | Material - Insulation | Contact Type | Termination | Number of Positions/Bay/Row [custom] | Read Out | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Wire Wrap | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Cantilever | Solder | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Card Extender | 3.96 mm | 0.156 in | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Solder | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||
EDAC Inc. | Floating Bobbin Top Mount Opening | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole Right Angle | Diallyl Phthalate (DAP) | Cantilever | Solder | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.95 mm | 0.116 in | |||
EDAC Inc. | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Solder | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Top Mount Opening Unthreaded | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Solder Eyelet(s) | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.96 mm | 0.156 in | |||
EDAC Inc. | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Wire Wrap | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Solder | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||
EDAC Inc. | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Solder Eyelet(s) | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||||
EDAC Inc. | Flush Mount Side Opening Unthreaded | 94 | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Green | 125 °C | -40 °C | Copper Alloy | Female | Through Hole | Diallyl Phthalate (DAP) | Cantilever | Solder | 47 | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-094 Series
94 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
