Specification	SEIFCX-10

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated
Current Rating	5 A
Features	Flange
Material - Insulation	PPO, Polyphenylene Oxide
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel
Number of Circuits	10
Number of Rows	1
Number of Wire Entries	10
Operating Temperature	110 °C
Pitch	0.25 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Brass
Top Termination	Screws with Captive Plate
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

SEIFCX Series

Part	Material Flammability Rating	Material - Insulation	Terminal Screw Material	Operating Temperature	Terminal Screw Finish	Mounting Type	Terminal Block Type	Top Termination	Current Rating	Bottom Termination	Number of Rows	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Features	Barrier Type	Number of Circuits	Pitch	Number of Wire Entries
Curtis Industries SEIFCX-16	UL94 V-0	Polyphenylene Oxide PPO	Brass	110 °C	Nickel	Chassis Panel	Barrier Block	Screws with Captive Plate	5 A	Insulated Solder Turret	1	16 AWG	22 AWG	Flange	2 Wall (Dual)	16	0.25 in	16
Curtis Industries SEIFCX-7	UL94 V-0	Polyphenylene Oxide PPO	Brass	110 °C	Nickel	Chassis Panel	Barrier Block	Screws with Captive Plate	5 A	Insulated Solder Turret	1	16 AWG	22 AWG	Flange	2 Wall (Dual)	7	0.25 in	7

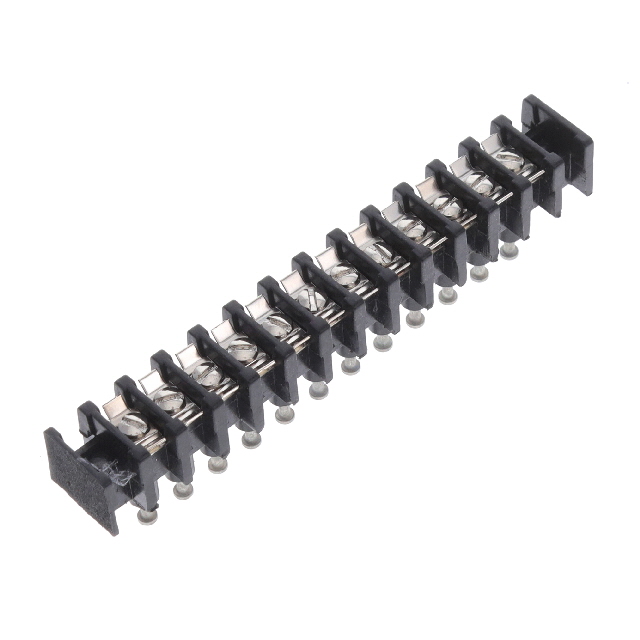

Curtis Industries SEIFCX-12	UL94 V-0	Polyphenylene Oxide PPO	Brass	110 °C	Nickel	Chassis Panel	Barrier Block	Screws with Captive Plate	5 A	Insulated Solder Turret	1	16 AWG	22 AWG	Flange	2 Wall (Dual)	12	0.25 in	12
Curtis Industries SEIFCX-6	UL94 V-0	Polyphenylene Oxide PPO	Brass	110 °C	Nickel	Chassis Panel	Barrier Block	Screws with Captive Plate	5 A	Insulated Solder Turret	1	16 AWG	22 AWG	Flange	2 Wall (Dual)	6	0.25 in	6
Curtis Industries SEIFCX-2	UL94 V-0	Polyphenylene Oxide PPO	Brass	110 °C	Nickel	Chassis Panel	Barrier Block	Screws with Captive Plate	5 A	Insulated Solder Turret	1	16 AWG	22 AWG	Flange	2 Wall (Dual)	2	0.25 in	2
Curtis Industries SEIFCX-10	UL94 V-0	Polyphenylene Oxide PPO	Brass	110 °C	Nickel	Chassis Panel	Barrier Block	Screws with Captive Plate	5 A	Insulated Solder Turret	1	16 AWG	22 AWG	Flange	2 Wall (Dual)	10	0.25 in	10
