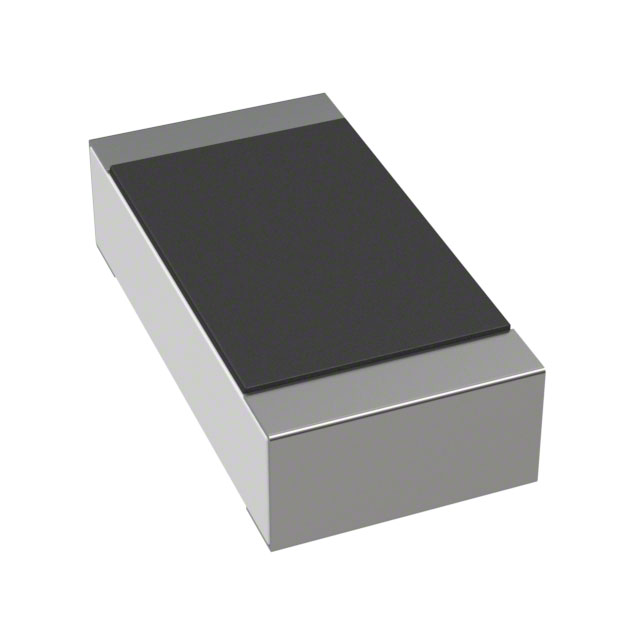

VSRP1206S1-R150F

Active

Delta Electronics/Cyntec

RES 0.15 OHM 1% 1W 1206

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VSRP1206S1-R150F	VSRP1206S1 Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200, Current Sense	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	0.85 mm	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "	0.033 "
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Power (Watts)	1 W	1 W
Ratings	AEC-Q200	AEC-Q200
Resistance	0.15 Ohms	0.02 - 430 Ohms
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	1206	1206
Temperature Coefficient	100 ppm/°C	100 - 200 ppm/°C
Tolerance	1 %	1 - 5 %

VSRP1206S1 Series

RES 0.3 OHM 5% 1W 1206

Part	Temperature Coefficient	Composition	Number of Terminations	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Ratings	Features	Supplier Device Package
Delta Electronics/Cyntec VSRP1206S1-R300J	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	5 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.3 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R020J	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	5 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.02 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R560J	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	5 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.56 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R050J	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	5 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.05 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R020F	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	1 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.02 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R130J	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	5 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.13 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R100F	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	1 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.1 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R330F	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	1 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	330 mOhms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
Delta Electronics/Cyntec VSRP1206S1-R150F	100 ppm/°C	Thick Film	2	1206 (3216 Metric)	0.063 in	1.6 mm	0.126 "	3.2 mm	1 %	0.85 mm	0.033 "	1 W	155 °C	-55 °C	0.15 Ohms	AEC-Q200	Automotive AEC-Q200, Current Sense	1206
