387-024-520-268
ActiveEDAC Inc.

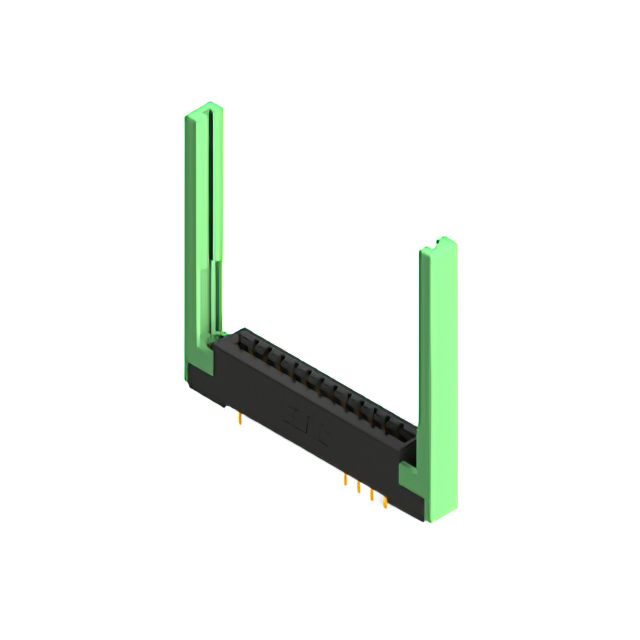

CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-024-520-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-024-520-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-024 Series
...
| Part | Number of Positions/Bay/Row [custom] | Gender | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Contact Finish | Color | Material - Insulation | Card Type | Pitch [x] | Pitch [x] | Termination | Number of Rows | Read Out | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 12 | Female | 2 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Solder | 2 | Dual | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Board Edge Straddle Mount | ||||
EDAC Inc. | 12 | Female | 2 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Wire Wrap | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | ||||
EDAC Inc. | 12 | Female | 2 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Solder | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | ||||
EDAC Inc. | 24 | Female | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | 1 | Single | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | ||||
EDAC Inc. | 24 | Female | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | 1 | Single | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | 0.156 in | 3.96 mm | ||
EDAC Inc. | 12 | Female | 2 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Solder | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | ||||
EDAC Inc. | 12 | Female | 2 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Wire Wrap | 2 | Dual | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | 3.25 mm | 0.128 in | ||
EDAC Inc. | 24 | Female | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | 1 | Single | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole | ||||
EDAC Inc. | 24 | Female | 1 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | 1 | Single | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole Right Angle | 0.156 in | 3.96 mm | ||
EDAC Inc. | 12 | Female | 2 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Gold | Black | Polyester Thermoplastic | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Solder | 2 | Dual | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.00 | |
Description
General part information
387-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
