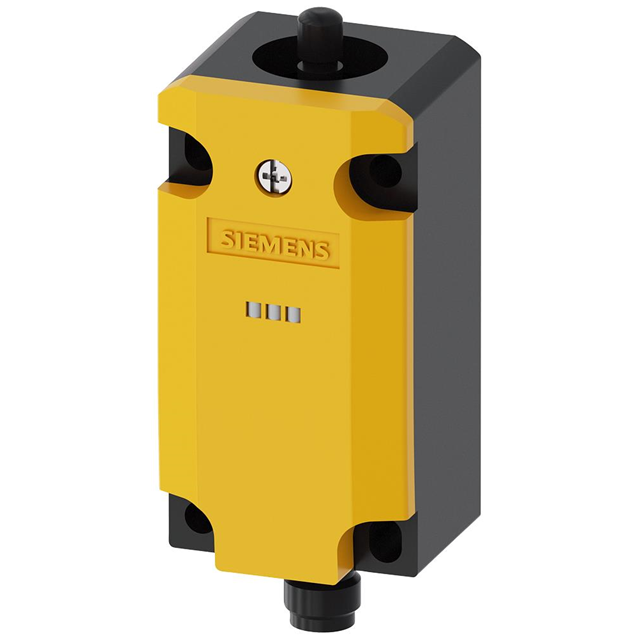

3SF11141KA001BA1
ActiveSiemens
SWITCH LIMIT RND PLUNGER 2NC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3SF11141KA001BA1
ActiveSiemens
SWITCH LIMIT RND PLUNGER 2NC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SF11141KA001BA1 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | DPST-NC |
| Ingress Protection | IP66/IP67 |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 416.88 | |
Description
General part information
3SF1114 Series
Switch DPST-NC Chassis Mount
