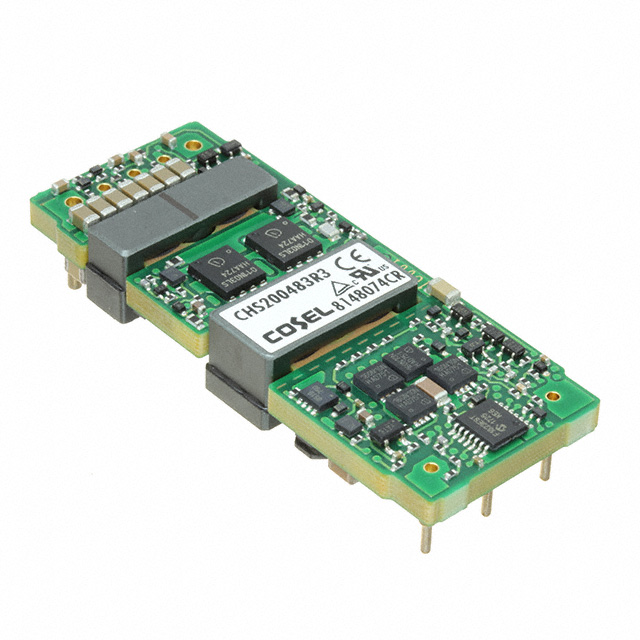

CHS200483R3

Active

Cosel USA, Inc.

DC DC CONVERTER 3.3V 165W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC DC CONVERTER 3.3V 165W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Cosel USA, Inc. CHS200483R3-U	1	Through Hole	36 V	3.3 V	Isolated Module	22.8 mm	57.9 mm	2.28 "	10 mm	22.86 mm	0.39 in	50 A	8-DIP Module	250 V	76 V	ITE (Commercial)	85 °C	-40 °C	93 %
Cosel USA, Inc. CHS200483R3	1	Through Hole	36 V	3.3 V	Isolated Module	22.8 mm	57.9 mm	2.28 "	10 mm	22.86 mm	0.39 in	50 A	8-DIP Module	250 V	76 V	ITE (Commercial)	85 °C	-40 °C	93 %
Cosel USA, Inc. CHS200483R3-R	1	Through Hole	36 V	3.3 V	Isolated Module	22.8 mm	57.9 mm	2.28 "	10 mm	22.86 mm	0.39 in	50 A	8-DIP Module	250 V	76 V	ITE (Commercial)	85 °C	-40 °C	93 %
Cosel USA, Inc. CHS200483R3-B	1	Through Hole	36 V	3.3 V	Isolated Module			58.4 mm		23.3 mm	12.7 mm	50 A	8-DIP Module	250 V	76 V	ITE (Commercial)	85 °C	-40 °C	93 %	2.3 in	0.5 in	0.92 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 50A 36V - 76V Input
