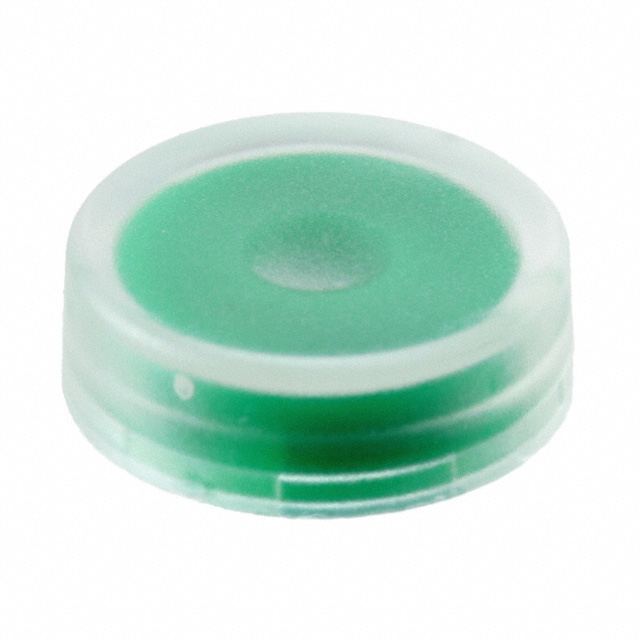

Specification	TL3240R1CAPGRN

Color	Green
For Use With/Related Products	TL3240 Series
Illumination	Illumination Opening
Mounting Type	Snap Fit
Shape	Round
Size Diameter	10.2 mm
Size Height	3.5 mm
Switch Type	Tactile

TL3240 Series

Part	For Use With/Related Products	Illumination	Color	Switch Type	Mounting Type	Size Height	Size Width	Size Length	Shape	Switch Function	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Outline Length	Outline Width	Contact Rating (Current)	Actuator Orientation	Actuator Type	Illumination Voltage (Nominal)	Operating Force	Actuator Height off PCB (Vertical)	Features	Circuit	Illumination Type	Mechanical Life (Cycles)	Switch Travel	Size Diameter
E-Switch TL3240S1CAPBLU	TL3240 Series	Illumination Opening	Blue	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square
E-Switch TL3240F260R		Illuminated	Red		Surface Mount					Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	0.05 A	Top Actuated	Plunger for Cap	1.8 VDC	260 gf	7.8 mm	Board Guide	SPST-NO	LED	200000 Cycles	0.2 mm
E-Switch TL3240R1CAPBLK	TL3240 Series	Illumination Opening	Black	Tactile	Snap Fit	3.5 mm			Round																		10.2 mm
E-Switch TL3240F160G		Illuminated	Green		Surface Mount					Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	0.05 A	Top Actuated	Plunger for Cap	2 VDC	160 gf	7.8 mm	Board Guide	SPST-NO	LED	200000 Cycles	0.2 mm
E-Switch TL3240S1CAPRED	TL3240 Series	Illumination Opening	Red	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square
E-Switch TL3240S1CAPGRN	TL3240 Series	Illumination Opening	Green	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square
E-Switch TL3240S1CAPYEL	TL3240 Series	Illumination Opening	Yellow	Tactile	Snap Fit	3.9 mm	10.2 mm	10.2 mm	Square
E-Switch TL3240F260B		Illuminated	Blue		Surface Mount					Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	0.05 A	Top Actuated	Plunger for Cap	3.2 VDC	260 gf	7.8 mm	Board Guide	SPST-NO	LED
E-Switch TL3240F100G		Illuminated	Green		Surface Mount					Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	0.05 A	Top Actuated	Plunger for Cap	2 VDC	0.1 kgf	7.8 mm	Board Guide	SPST-NO	LED	200000 Cycles	0.2 mm
E-Switch TL3240F160BT		Illuminated	Blue		Surface Mount					Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	0.05 A	Top Actuated	Plunger for Cap	3.2 VDC	160 gf	7.8 mm		SPST-NO	LED	500000 Cycles	0.2 mm
