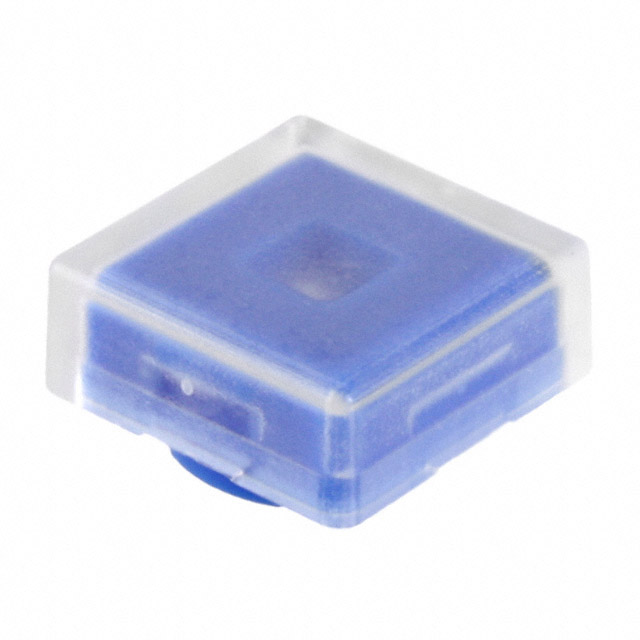

TL3240S1CAPBLU

Active

E-Switch

CAP TACTILE SQUARE BLUE

Deep-Dive with AI

Search across all available documentation for this part.

TL3240S1CAPBLU

Active

E-Switch

CAP TACTILE SQUARE BLUE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL3240S1CAPBLU

Color	Blue
For Use With/Related Products	TL3240 Series
Illumination	Illumination Opening
Mounting Type	Snap Fit
Shape	Square
Size [x]	10.2 mm
Size [y]	10.2 mm
Size [z]	3.9 mm
Switch Type	Tactile

TL3240 Series

Part	Color	Mounting Type	Switch Type	For Use With/Related Products	Illumination	Size [y]	Size [x]	Size [z]	Shape	Actuator Type	Illumination Type, Color	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Circuit	Actuator Height off PCB, Vertical	Mechanical Life	Features	Switch Travel	Actuator Orientation	Operating Force	Size [diameter]
E-Switch TL3240S1CAPBLU	Blue	Snap Fit	Tactile	TL3240 Series	Illumination Opening	10.2 mm	10.2 mm	3.9 mm	Square
E-Switch TL3240F260R		Surface Mount			Illuminated					Plunger for Cap	LED Red	Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	1.8 VDC	0.05 A 12 VDC	SPST-NO	7.8 mm	200000 Cycles	Board Guide	0.2 mm	Top Actuated	260 gf
E-Switch TL3240R1CAPBLK	Black	Snap Fit	Tactile	TL3240 Series	Illumination Opening			3.5 mm	Round																		10.2 mm
E-Switch TL3240F160G		Surface Mount			Illuminated					Plunger for Cap	Green LED	Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	2 VDC	0.05 A 12 VDC	SPST-NO	7.8 mm	200000 Cycles	Board Guide	0.2 mm	Top Actuated
E-Switch TL3240S1CAPGRN	Green	Snap Fit	Tactile	TL3240 Series	Illumination Opening	10.2 mm	10.2 mm	3.9 mm	Square
E-Switch TL3240S1CAPYEL	Yellow	Snap Fit	Tactile	TL3240 Series	Illumination Opening	10.2 mm	10.2 mm	3.9 mm	Square
E-Switch TL3240F100G		Surface Mount			Illuminated					Plunger for Cap	Green LED	Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	2 VDC	0.05 A 12 VDC	SPST-NO	7.8 mm	200000 Cycles	Board Guide	0.2 mm	Top Actuated	100 gf
E-Switch TL3240F160BT		Surface Mount			Illuminated					Plunger for Cap	Blue LED	Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	3.2 VDC	0.05 A 12 VDC	SPST-NO	7.8 mm	500000 Cycles		0.2 mm	Top Actuated
E-Switch TL3240F160YT		Surface Mount			Illuminated					Plunger for Cap	LED Yellow	Off-Mom	Gull Wing	70 °C	-25 °C	6.1 mm	6.1 mm	2 VDC	0.05 A 12 VDC	SPST-NO	7.8 mm	200000 Cycles		0.2 mm	Top Actuated
E-Switch TL3240R1CAPYEL	Yellow	Snap Fit	Tactile	TL3240 Series	Illumination Opening			3.5 mm	Round																		10.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.54

Description

General part information

TL3240 Series

Square Tactile Switch Cap Blue Snap Fit

Documents

Technical documentation and resources

No documents available
