FGN.2F.308.XLC

Active

LEMO

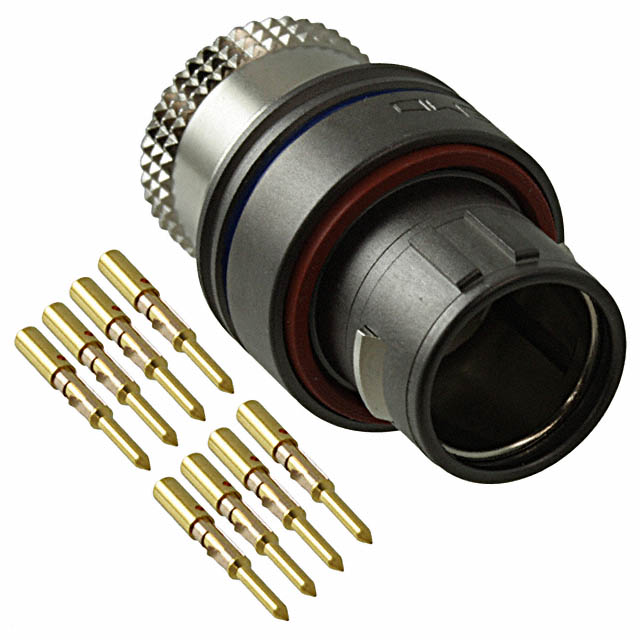

CONN PLUG MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet F Series Catalog

FGN.2F.308.XLC

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet F Series Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.70
		10	$ 81.39
		25	$ 78.26
		50	$ 75.66
		100	$ 71.48

Description

General part information

FGN.2F Series

8 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

F Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.2F.308.XLC	FGN.2F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	14 mm	14 mm
Cable Opening [custom]	0.551 in	0.551 in
Color	Gray	Gray, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-55 - -15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	308	308 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGN.2F Series

CONN PLUG MALE 10POS GOLD CRIMP

Part	Number of Positions	Primary Material	Orientation	Shell Finish	Applications	Fastening Type	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Termination	Shielding	Shell Size - Insert	Color	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Mounting Type	Insert Material	Material Flammability Rating	Connector Type
LEMO FGN.2F.310.XLCS	10	Metal	N	Nickel	Aerospace	Push-Pull	Gold	Brass	8 A	Crimp	Shielded	310	Gray	Aluminum Alloy	14 mm	0.551 in	200 °C	-15 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.310.CLC	10	Metal	N	Chrome	Aerospace	Push-Pull	Gold	Brass	8 A	Crimp	Shielded	310	Silver	Brass	14 mm	0.551 in	200 °C	-55 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.319.YLC	19	Metal	N	Nickel	Aerospace	Push-Pull	Gold	Brass	5 A	Crimp	Shielded	319	Gray	Aluminum Alloy	14 mm	0.551 in	200 °C	-15 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.308.XLC	8	Metal	N	Nickel	Aerospace	Push-Pull	Gold	Brass	10 A	Crimp	Shielded	308	Gray	Aluminum Alloy	14 mm	0.551 in	200 °C	-15 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.312.XLC	12	Metal	N	Nickel	Aerospace	Push-Pull	Gold	Brass	7 A	Crimp	Shielded	312	Gray	Aluminum Alloy	14 mm	0.551 in	200 °C	-15 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.319.XLCF	19	Metal	N	Nickel	Aerospace	Push-Pull	Gold	Brass	5 A	Crimp	Shielded	319	Gray	Aluminum Alloy	14 mm	0.551 in	200 °C	-15 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.312.CLC	12	Metal	N	Chrome	Aerospace	Push-Pull	Gold	Brass	7 A	Crimp	Shielded	312	Silver	Brass	14 mm	0.551 in	200 °C	-55 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
LEMO FGN.2F.319.CLC	19	Metal	N	Chrome	Aerospace	Push-Pull	Gold	Brass	5 A	Crimp	Shielded	319	Silver	Brass	14 mm	0.551 in	200 °C	-55 °C	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	UL94 V-0	Male Pins, Plug
