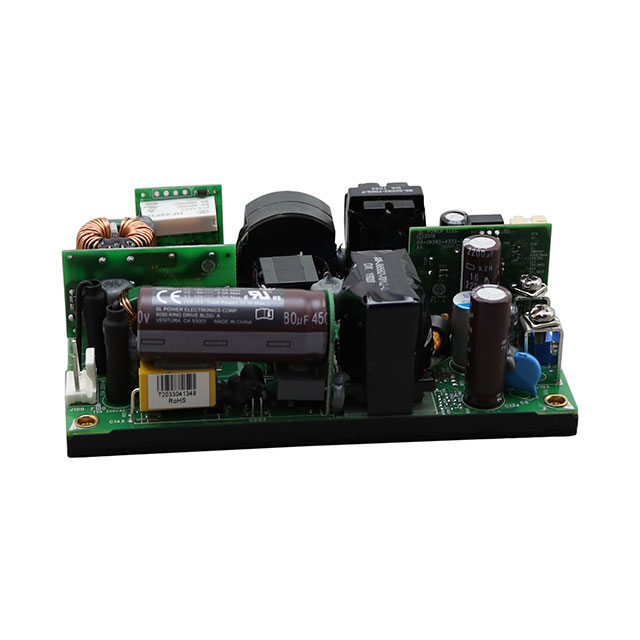

GU300S12K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 184W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 184W

Technical Specifications

Parameters and characteristics for this part

Specification	GU300S12K

Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus, D-Mark
Current - Output 1	15.5 A
Efficiency	91 %
Features	Universal Input, PMBus™, Adjustable Output, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	284 W
Power (Watts)	184 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	60601-1, 62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 184W

Part	Current - Output 1	Mounting Type	Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Load Required	Voltage - Isolation	Efficiency	Approval Agency	Number of Outputs	Applications	Power (Watts)	Power (Watts)	Standard Number	Features
SL POWER / Advanced Energy GU300S12K	15.5 A	Chassis Mount	Open Frame	12 V	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	-20 °C	70 °C		4000 V	91 %	CE, cURus, D-Mark	1	ITE (Commercial), Medical	284 W	184 W	60601-1, 62368-1	Adjustable Output, PMBus™, Standby Output, Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 117.50

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
