242230-75

Active

Amphenol RF

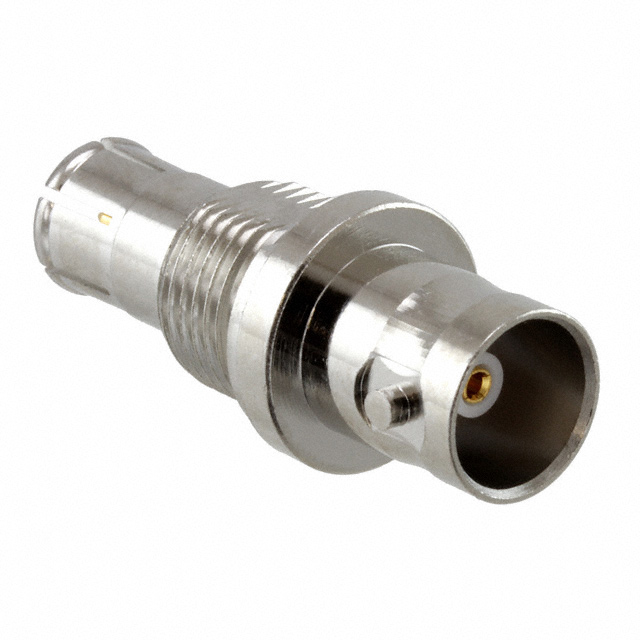

COAX ADAPT BNC TO BNC

Search across all available documentation for this part.

Active

Amphenol RF

COAX ADAPT BNC TO BNC

Technical Specifications

Parameters and characteristics for this part

Specification	242230-75

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Material	Body Finish	Impedance	Frequency - Max [Max]	Conversion Type	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Fastening Type	Body Material	Center Contact Plating	Mounting Type	Adapter Type	Adapter Series	Convert To (Adapter End)	Style
Amphenol RF 242230-75	Phosphor Bronze	Nickel	75 Ohms	2 GHz	Same Series	BNC Jack Female Socket	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Bayonet Lock Snap-On	Brass	Gold	Free Hanging (In-Line)	Plug to Jack	BNC to BNC	BNC Plug Male Pin	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Plug, Male Pin 75 Ohms
