175-6-280P

Active

Wakefield-Vette

THERM PAD 21.79MMX18.39MM GRAY

Search across all available documentation for this part.

Active

Wakefield-Vette

THERM PAD 21.79MMX18.39MM GRAY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

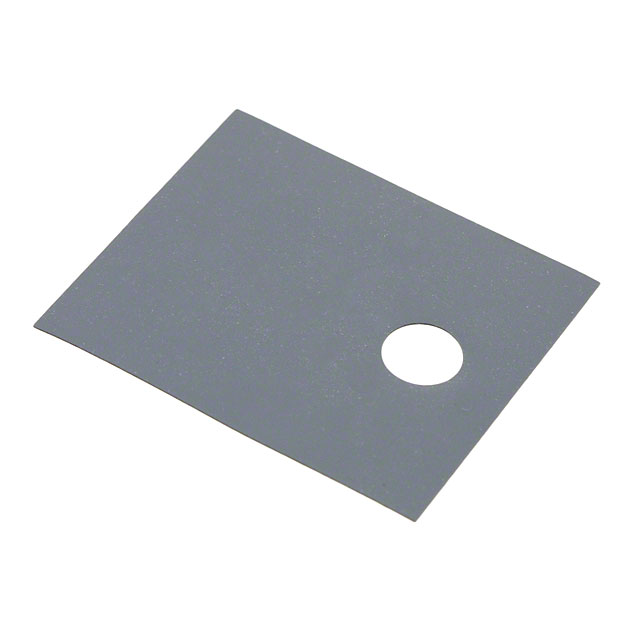

Thermal Pad Gray 21.79mm x 18.39mm Rectangular

Technical documentation and resources

Specification	175-6-280P	175-6 Series

Backing, Carrier	Polyimide	Polyimide
Color	Gray	Gray
Outline [x]	21.79 mm	15.87 - 152.4 mm
Outline [y]	18.39 mm	5.08 - 152.4 mm
Shape	Rectangular	Rectangular, Round, Rhombus, Square
Thermal Conductivity	0.5 W/m-K	0.5 W/m-K
Thermal Resistivity	0.4 °C/W	0.4 °C/W
Thickness	0.152 mm	0.152 mm
Thickness	0.006 in	0.006 in
Usage	TO-220	TO-220, DO-4, DO-5, TO-3

Part	Thermal Resistivity	Backing, Carrier	Thermal Conductivity	Shape	Usage	Color	Thickness	Thickness	Outline [x]	Outline [y]
Wakefield-Vette 175-6-280P	0.4 °C/W	Polyimide	0.5 W/m-K	Rectangular	TO-220	Gray	0.152 mm	0.006 in	21.79 mm	18.39 mm
Wakefield-Vette 175-6-240P	0.4 °C/W	Polyimide	0.5 W/m-K	Rectangular	TO-220	Gray	0.152 mm	0.006 in	19.1 mm	12.7 mm
Wakefield-Vette 175-6-510P	0.4 °C/W	Polyimide	0.5 W/m-K	Round	DO-4, DO-5	Gray	0.152 mm	0.006 in	20.32 mm	6.6 mm
Wakefield-Vette 175-6-410P	0.4 °C/W	Polyimide	0.5 W/m-K	Round	DO-4, DO-5	Gray	0.152 mm	0.006 in	15.87 mm	5.08 mm
Wakefield-Vette 175-6-210P	0.4 °C/W	Polyimide	0.5 W/m-K	Rectangular	TO-220	Gray	0.152 mm	0.006 in	17.45 mm	14.27 mm
Wakefield-Vette 175-6-330P	0.4 °C/W	Polyimide	0.5 W/m-K	Rhombus	TO-3	Gray	0.152 mm	0.006 in	41.91 mm	28.96 mm
Wakefield-Vette 175-6-66P	0.4 °C/W	Polyimide	0.5 W/m-K	Square		Gray	0.152 mm	0.006 in	152.4 mm	152.4 mm
