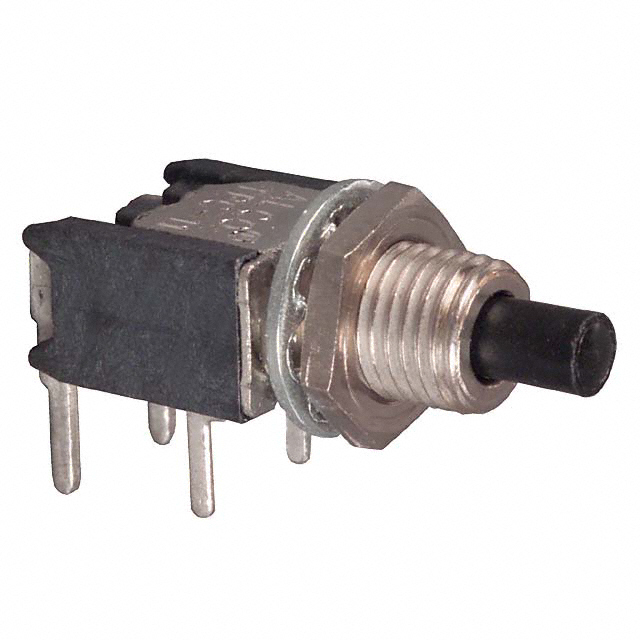

TPC11CGRA0

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	TPC11CGRA0

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Mounting Type	Panel Mount, Right Angle, Rear
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.83 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Actuator Marking	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Termination Style	Type	Mounting Type	Circuit
TE Connectivity Raychem Cable Protection TPC11CGPC0	No Marking	20 V	4.83 mm	Black	100000 Cycles	0.4 VA	20 V	65 °C	-30 ░C	Off-Mom	Round Plunger	PC Pin	Standard	Panel Mount Rear	SPST-NO
TE Connectivity Raychem Cable Protection TPC11CGRA2	No Marking	20 V	4.83 mm	Red	100000 Cycles	0.4 VA	20 V	65 °C	-30 ░C	Off-Mom	Round Plunger	PC Pin	Standard	Panel Mount Rear Right Angle	SPST-NO
TE Connectivity Raychem Cable Protection TPC11FGPC004	No Marking	20 V	4.83 mm	Black	100000 Cycles	0.4 VA	20 V	65 °C	-30 ░C	On-Mom	Round Plunger	PC Pin	Standard	Panel Mount Rear	SPDT
TE Connectivity Raychem Cable Protection TPC11CGVRA0	No Marking	20 V	4.83 mm	Black	100000 Cycles	0.4 VA	20 V	65 °C	-30 ░C	Off-Mom	Round Plunger	PC Pin	Standard	Panel Mount Rear Right Angle Vertical	SPST-NO
TE Connectivity Raychem Cable Protection TPC11CGRA0	No Marking	20 V	4.83 mm	Black	100000 Cycles	0.4 VA	20 V	65 °C	-30 ░C	Off-Mom	Round Plunger	PC Pin	Standard	Panel Mount Rear Right Angle	SPST-NO
TE Connectivity Raychem Cable Protection TPC11FGVRA0	No Marking	20 V	4.83 mm	Black	100000 Cycles	0.4 VA	20 V	65 °C	-30 ░C	On-Mom	Round Plunger	PC Pin	Standard	Panel Mount Rear Right Angle Vertical	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.90

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Right Angle, Rear
