1.5KE100A-AP
ActiveMicro Commercial Co
INTERFACE
Deep-Dive with AI
Search across all available documentation for this part.

1.5KE100A-AP
ActiveMicro Commercial Co
INTERFACE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
Specification | 1.5KE100A-AP |
---|---|
Applications | Telecom |
Current - Peak Pulse (10/1000µs) | 11.1 A |
Grade | Automotive |
Mounting Type | Through Hole |
Operating Temperature [Max] | 175 ░C |
Operating Temperature [Min] | -55 °C |
Package / Case | DO-201AE, Axial |
Power - Peak Pulse | 1.5 kW |
Power - Peak Pulse | 1500 W |
Power Line Protection | False |
Qualification | AEC-Q101 |
Supplier Device Package | DO-201AE |
Type | Zener |
Unidirectional Channels [custom] | 1 |
Voltage - Breakdown (Min) [Min] | 95 V |
Voltage - Clamping (Max) @ Ipp | 137 V |
Voltage - Reverse Standoff (Typ) | 85.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 12000 | $ 0.17 |
1.5KE100 Series
INTERFACE
Part | Applications | Voltage - Breakdown (Min) [Min] | Supplier Device Package | Power Line Protection | Power - Peak Pulse | Power - Peak Pulse | Package / Case | Voltage - Reverse Standoff (Typ) | Qualification | Type | Unidirectional Channels [custom] | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Current - Peak Pulse (10/1000µs) | Mounting Type | Voltage - Clamping (Max) @ Ipp |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Micro Commercial Co 1.5KE100A-AP | Telecom | 95 V | DO-201AE | 1.5 kW | 1500 W | DO-201AE, Axial | 85.5 V | AEC-Q101 | Zener | 1 | Automotive | -55 °C | 175 ░C | 11.1 A | Through Hole | 137 V |
Description
General part information
1.5KE100 Series

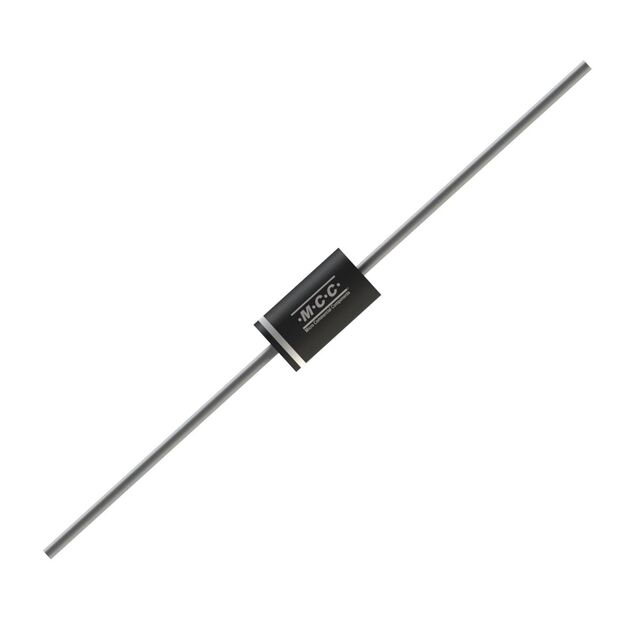

137V Clamp 11.1A Ipp Tvs Diode Through Hole DO-201AE
