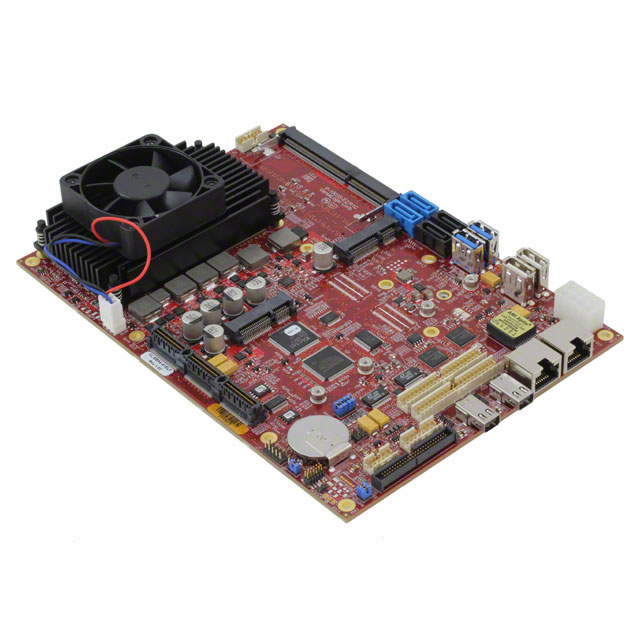

VL-EBXE-41ELF

Obsolete

VersaLogic Corporation

SBC 1.6GHZ 2 CORE 16GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VL-EBXE-41ELF

Obsolete

VersaLogic Corporation

SBC 1.6GHZ 2 CORE 16GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VL-EBX Series

Single Board Computer 1.6GHz 2 Core 16GB/0GB RAM Intel Core i3-3217UE

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VL-EBXE-41ELF	VL-EBX Series

Analog Input:Output	-	8
Analog Input:Output	-	4
Analog Input:Output [custom]	8	0 - 8
Analog Input:Output [custom]	16	8 - 16
Cooling Type	Fan + Heat Sink	Fan + Heat Sink, Heat Sink
Core Processor	Intel Core i3-3217UE	Intel Core i3-3217UE, Vortex86DX2, Geode LX 800, Intel Core i7-3517UE
Digital I/O Lines	32	32
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	2 - 1000 Mbps
Ethernet	-	GbE (2)
Expansion Site/Bus	PCIe/104	PC/104-Plus, PCIe/104, SUMIT
Form Factor	EBX	EBX
Number of Cores	2	1 - 2
Operating Temperature [Max]	85 °C	60 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Power (Watts)	-	4.5 - 20.7 W
RAM Capacity/Installed	16 GB, 0 GB	0 - 16 GB
RAM Capacity/Installed	-	8 GB
RAM Capacity/Installed	-	0 GB
RS-232 (422, 485)	4	4
Size / Dimension [x]	146.05 mm	146.05 mm
Size / Dimension [x]	5.75 in	5.75 in
Size / Dimension [y]	203.2 mm	203.2 mm
Size / Dimension [y]	8 in	8 in
Speed	1.6 GHz	1.2 - 933 GHz
Storage Interface	SATA6 (2), mSATA, SATA3 (2), eUSB	eUSB, MiniBlade, SATA2 (2), SATA6 (2), mSATA, SATA3 (2), SATA, Mini PCIe/mSATA, microSD, ATA-4, CompactFlash
USB	USB 2.0 (10), USB 3.0 (2)	USB 2.0 (6), USB 2.0 (10), USB 3.0 (2), USB 2.0 (5), USB 2.0 (4)
Video Outputs	VGA, LVDS	VGA, LVDS (2), LVDS
Watchdog Timer	True	True

VL-EBX Series

SBC 1.2GHZ 2 CORE 8GB/0GB RAM

Part	Ethernet	Storage Interface	Expansion Site/Bus	RS-232 (422, 485)	Number of Cores	Speed	Digital I/O Lines	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	USB	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Video Outputs	Analog Input:Output [x]	Analog Input:Output [y]	Form Factor	Cooling Type	Analog Input:Output [custom]	Analog Input:Output [custom]	Ethernet	RAM Capacity/Installed	Core Processor
VersaLogic Corporation VL-EBX-37F	GbE (2)	eUSB, MiniBlade, SATA2 (2)	PC/104-Plus	4	2	1.2 GHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (6)	14.3 W	85 °C	-40 °C	8 GB	0 GB	LVDS (2), VGA	8	4	EBX	Fan + Heat Sink
VersaLogic Corporation VL-EBX-37E	GbE (2)	eUSB, MiniBlade, SATA2 (2)	PC/104-Plus	4	2	1.2 GHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (6)	14.3 W	85 °C	-40 °C	8 GB	0 GB	LVDS (2), VGA	8	4	EBX	Fan + Heat Sink
VersaLogic Corporation VL-EBXE-41ELF		eUSB, mSATA, SATA3 (2), SATA6 (2)	PCIe/104	4	2	1.6 GHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (10), USB 3.0 (2)		85 °C	-40 °C			LVDS, VGA			EBX	Fan + Heat Sink	8	16	10 Mbps, 100 Mbps, 1000 Mbps	0 GB, 16 GB	Intel Core i3-3217UE
VersaLogic Corporation VL-EBX-18EAK		microSD, Mini PCIe/mSATA, SATA	PC/104-Plus	4	1	800 MHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (5)	5.8 W	85 °C	-40 °C			LVDS, VGA			EBX		0	8	2, 10 Mbps, 100 Mbps		Vortex86DX2
VersaLogic Corporation VL-EBX-18SAK		microSD, Mini PCIe/mSATA, SATA	PC/104-Plus	4	1	933 MHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (5)	5.8 W	60 °C	0 °C			LVDS, VGA			EBX		0	8	2, 10 Mbps, 100 Mbps		Vortex86DX2
VersaLogic Corporation VL-EBX-11H		ATA-4, CompactFlash	PC/104-Plus	4	1	500 MHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (4)	4.5 W	85 °C	-40 °C			LVDS, VGA			EBX	Heat Sink	0	8	2, 10 Mbps, 100 Mbps	0 GB, 1 GB	Geode LX 800
VersaLogic Corporation VL-EBXS-41SAK		eUSB, mSATA, SATA3 (2), SATA6 (2)	SUMIT	4	2	1.7 GHz	32	203.2 mm	146.05 mm	8 in	5.75 in	USB 2.0 (10), USB 3.0 (2)	20.7 W	60 °C	0 °C			LVDS, VGA			EBX	Fan + Heat Sink	8	16	10 Mbps, 100 Mbps, 1000 Mbps	0 GB, 16 GB	Intel Core i7-3517UE
