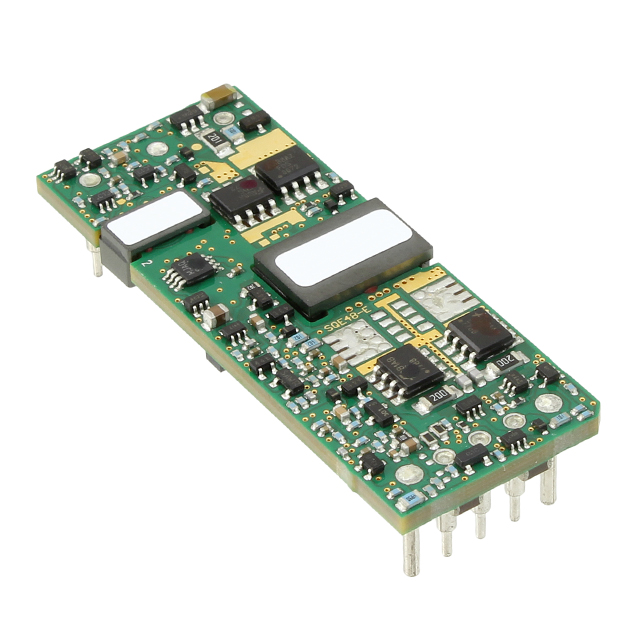

SQE48T20033-NGB0G

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 66W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 66W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.3V 66W

Part	Efficiency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Applications	Control Features
Bel Power Solutions SQE48T20033-NGB0G	92 %	Through Hole	85 °C	-40 °C	36 V	1/8 Brick, 8-DIP Module	3.3 V	Isolated Module	20 A	75 V	OCP, OTP, OVP, Remote On/Off, UVLO	1	10.4 mm	58.4 mm	0.9 "	0.41 "	2.3 in	22.9 mm	2000 V	ITE (Commercial)	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	144	$ 62.72

General part information

Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input

Technical documentation and resources

No documents available
