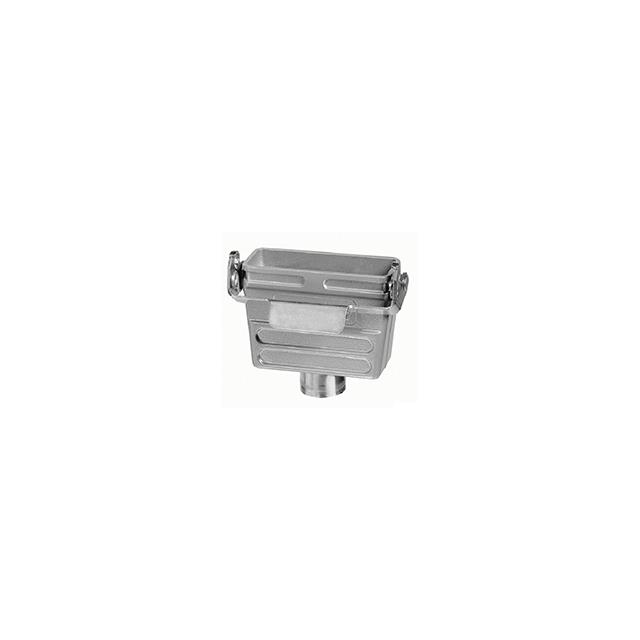

C146 10G015 804 2

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZA10

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZA10

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10G015 804 2

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood Top
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	2.461 "
Size / Dimension [x]	62.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [y]	29.5 mm
Size / Dimension [z]	2.323 "
Size / Dimension [z]	59 mm
Style	Bottom Entry
Thread Size	PG21

Part	Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Housing Material	Ingress Protection	Size	Connector Type	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Features
Amphenol Tuchel Industrial C146 10G015 500 2	Side Entry	1.161 "	62.5 mm	64.5 mm	2.461 "	2.539 in	29.5 mm	100 °C	-40 °C	PG21	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	A10	Hood	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10G015 501 2	Side Entry	1.161 "	62.5 mm	64.5 mm	2.461 "	2.539 in	29.5 mm	100 °C	-40 °C	PG16	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	A10	Hood	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10G015 600 2	Top Entry	1.161 "	62.5 mm	64.5 mm	2.461 "	2.539 in	29.5 mm	100 °C	-40 °C	PG21	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	A10	Hood	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10G015 804 2	Bottom Entry	1.161 "	62.5 mm		2.461 "	2.323 "		100 °C	-40 °C	PG21	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	A10	Hood - Coupling	Locking Clip (1) on Hood Top	29.5 mm	59 mm	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 29.78

General part information

Hood - Coupling Connector Bottom Entry PG21 A10 IP65 - Dust Tight, Water Resistant
