CPDH3V3UP-HF

Active

Comchip Technology

TVS DIODE 3.3VWM 8VC SOD523

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 3.3VWM 8VC SOD523

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

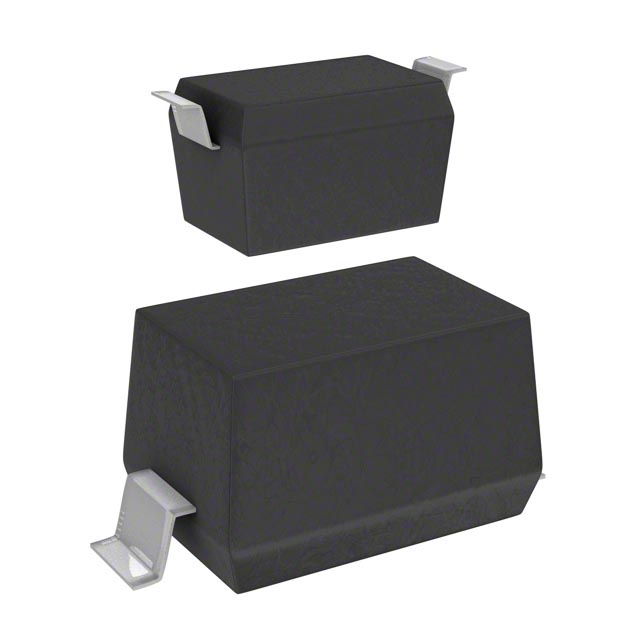

8V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523

Technical documentation and resources

No documents available

Specification	CPDH3V3UP-HF	CPDH3V3 Series

Applications	General Purpose	General Purpose
Capacitance @ Frequency	12 pF	0.4 - 12 pF
Current - Peak Pulse (10/1000µs)	5 A	4 - 5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	125 °C
Operating Temperature	-	-55 °C
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SC-79, SOD-523	SC-79, SOD-523
Power - Peak Pulse	40 W	40 - 60 W
Power Line Protection	False	False
Supplier Device Package	SOD-523	SOD-523
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min)	-	4.2 V
Voltage - Clamping (Max) @ Ipp [Max]	8 V	8 - 15 V
Voltage - Reverse Standoff (Typ)	3.3 V	3.3 V

Part	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Power Line Protection	Applications	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Type	Power - Peak Pulse	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]
Comchip Technology CPDH3V3UP-HF	12 pF	5 A	125 ¯C	-55 °C		General Purpose	1	3.3 V	Zener	40 W	SOD-523	8 V	SC-79, SOD-523	Surface Mount
Comchip Technology CPDH3V3U-HF	0.4 pF	4 A				General Purpose	1	3.3 V	Zener	60 W	SOD-523	15 V	SC-79, SOD-523	Surface Mount	125 °C	-55 °C	4.2 V
