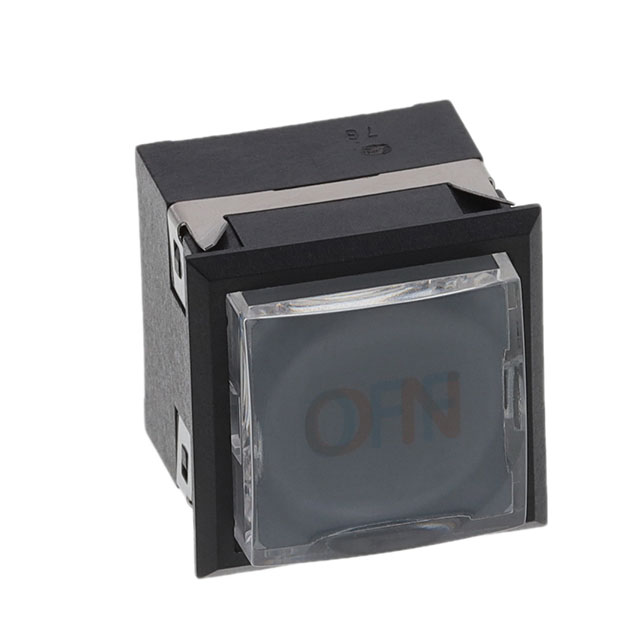

Specification	UB215KKW016DG-4JDG11

Actuator Marking	OFF, ON
Actuator Type	Alternating Legend, Square, Button
Circuit	SPDT
Color	Blue, Amber
Color - Actuator/Cap	Clear
Current Rating	5 A
Electrical Life (Cycles)	10000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	2 VDC, 2.8
Illumination Voltage (Nominal)	2.8 VDC, 2 VDC
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Length	17.4 mm
Panel Cutout Shape	Square
Panel Cutout Width	17.4 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB215KK Series

Part	Illumination Type	Color	Color - Actuator/Cap	Mounting Type	Termination Style	Switch Function	Actuator Type	Voltage Rating - AC	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Illumination Voltage (Nominal)	Illumination Voltage (Nominal)	Circuit	Voltage Rating - DC	Actuator Marking	Type	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Electrical Life (Cycles)	Mechanical Life (Cycles)	Features	Pulse
NKK Switches UB215KKW016DG-4JDG11	LED	Amber Blue	Clear	Panel Mount Snap-In	Solder Lug	On-Mom	Alternating Legend Button Square	125 V	5 A	-25 °C	50 °C	2 VDC 2.8	2 VDC 2.8 VDC	SPDT	30 V	OFF ON	Illuminated Standard	17.4 mm	Square	17.4 mm	10000 Cycles	1000000 Cycles
NKK Switches UB215KKG01N				Panel Mount Snap-In	Solder Lug	On-Mom	Plunger for Cap	28 V	0.4 VA	-25 °C	70 °C			SPDT	28 V	No Marking	Standard	17.4 mm	Square	17.4 mm	200000	1000000 Cycles	Pulse Pulse 300 ms	300 ms
NKK Switches UB215KKW01N				Panel Mount Snap-In	Solder Lug	On-Mom	Plunger for Cap	125 V	5 A	-25 °C	70 °C			SPDT	30 V	No Marking	Standard	17.4 mm	Square	17.4 mm	10000 Cycles	1000000 Cycles	RTV Adhesive Sealant on Terminals
NKK Switches UB215KKG015C-3JB	LED	Red	Clear (White Filter/Diffuser)	Panel Mount Snap-In	Solder Lug	On-Mom	Button Square	28 V	0.4 VA	-25 °C	50 °C		1.85 VDC	SPDT	28 V	No Marking	Illuminated Standard	17.4 mm	Square	17.4 mm	200000	1000000 Cycles	Process Sealed
NKK Switches UB215KKG016CF-5JCF11	LED	Green Red	Clear	Panel Mount Snap-In	Solder Lug	On-Mom	Alternating Legend Button Square	28 V	0.4 VA	-25 °C	50 °C	2.1 3.5 VDC	2.1 VDC 3.5 VDC	SPDT	28 V	OFF ON	Illuminated Standard	17.4 mm	Square	17.4 mm	200000	1000000 Cycles
NKK Switches UB215KKG015C-3JF	LED	Red	Clear (Green Filter/Diffuser)	Panel Mount Snap-In	Solder Lug	On-Mom	Button Square	28 V	0.4 VA	-25 °C	50 °C		1.85 VDC	SPDT	28 V	No Marking	Illuminated Standard	17.4 mm	Square	17.4 mm	200000	1000000 Cycles	Process Sealed
NKK Switches UB215KKG015D	LED	Amber		Panel Mount Snap-In	Solder Lug	On-Mom	Plunger for Cap	28 V	0.4 VA	-25 °C	50 °C		2 VDC	SPDT	28 V	No Marking	Illuminated Standard	17.4 mm	Square	17.4 mm	200000	1000000 Cycles	Process Sealed
NKK Switches UB215KKW016CF-4JCF11	LED	Green Red	Clear	Panel Mount Snap-In	Solder Lug	On-Mom	Alternating Legend Button Square	125 V	5 A	-25 °C	50 °C	2.1 3.5 VDC	2.1 VDC 3.5 VDC	SPDT	30 V	OFF ON	Illuminated Standard	17.4 mm	Square	17.4 mm	10000 Cycles	1000000 Cycles
NKK Switches UB215KKW016F-1JF	LED	Green	Clear (Green Filter/Diffuser)	Panel Mount Snap-In	Solder Lug	On-Mom	Button Square	125 V	5 A	-25 °C	50 °C		3.5 VDC	SPDT	30 V	No Marking	Illuminated Standard	17.4 mm	Square	17.4 mm	10000 Cycles	1000000 Cycles	RTV Adhesive Sealant on Terminals
NKK Switches UB215KKG016DG-5JDG11	LED	Amber Blue	Clear	Panel Mount Snap-In	Solder Lug	On-Mom	Alternating Legend Button Square	28 V	0.4 VA	-25 °C	50 °C	2 VDC 2.8	2 VDC 2.8 VDC	SPDT	28 V	OFF ON	Illuminated Standard	17.4 mm	Square	17.4 mm	200000	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UB215KKW016DG-4JDG11 | Datasheet

UB2 Indicators
