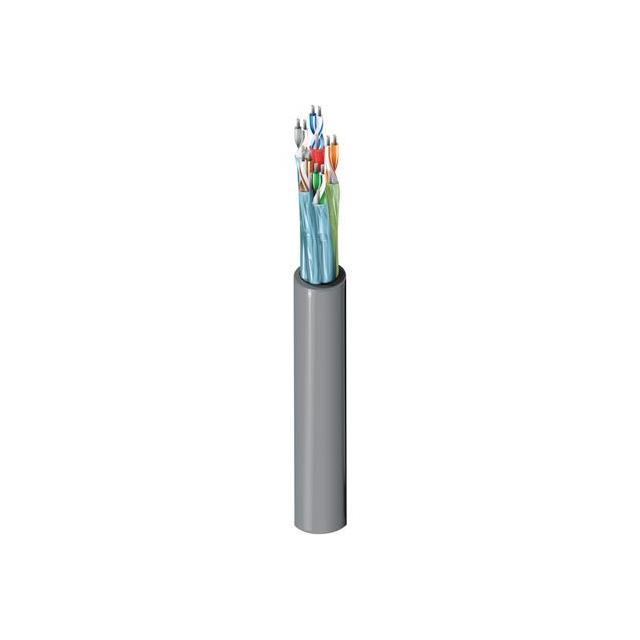

89705 0081000

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 5 #24 FS PR FFEP SLF

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 5 #24 FS PR FFEP SLF

Technical Specifications

Parameters and characteristics for this part

Specification	89705 0081000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Shield Type	Number of Conductors	Cable Type	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Length	Length	Conductor Insulation	Features
Belden Inc. 89705 0081000	32 AWG	7	100 %	Gray	24 AWG	Plenum Polyvinylidene Fluoride (PVDF)	Copper Tinned	Foil	10	Multi-Pair	Computer	0.356 mm	0.014 in	300 V	UL Style CMP	8.31 mm	0.327 in	Aluminum	1000 ft	304.8 m	Foam Fluorinated Ethylene-Propylene (FFEP)	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 21.13

General part information

10 (5 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
