050R8-102B

Active

Parlex USA LLC

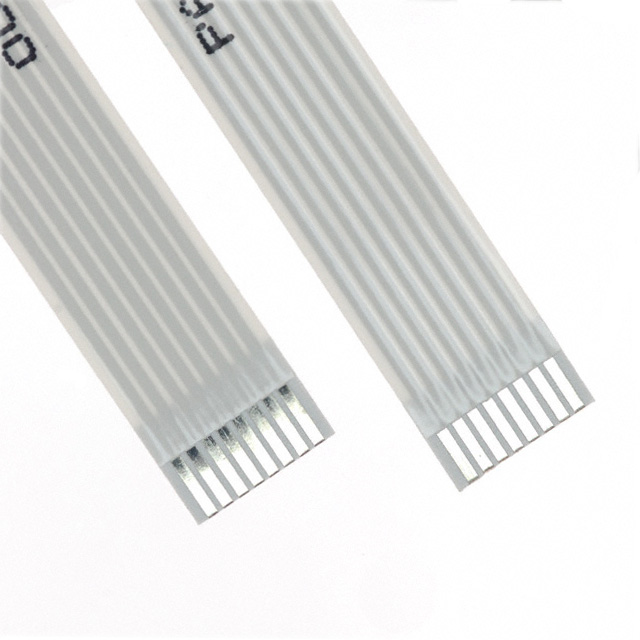

CABLE FFC/FPC 8POS 0.5MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 8POS 0.5MM 4"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)

Technical documentation and resources

Specification	050R8-102B	050R8 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 5 in
Length	101.6 mm	50.8 - 127 mm
Length	-	5.984 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	8	8
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Cable Type	Termination Style	Number of Conductors	Length	Length
Parlex USA LLC 050R8-152B	0.14 in	3.56 mm	0.5 mm	0.02 in	5.984 in	152 mm	FFC, FPC	Backers on Both Sides, Top on Both Sides	8
Parlex USA LLC 050R8-102B	0.14 in	3.56 mm	0.5 mm	0.02 in			FFC, FPC	Backers on Both Sides, Top on Both Sides	8	4 in	101.6 mm
Parlex USA LLC 050R8-51B	0.14 in	3.56 mm	0.5 mm	0.02 in			FFC, FPC	Backers on Both Sides, Top on Both Sides	8	2 in	50.8 mm
Parlex USA LLC 050R8-127B	0.14 in	3.56 mm	0.5 mm	0.02 in			FFC, FPC	Backers on Both Sides, Top on Both Sides	8	5 in	127 mm
Parlex USA LLC 050R8-76B	0.14 in	3.56 mm	0.5 mm	0.02 in			FFC, FPC	Backers on Both Sides, Top on Both Sides	8	3 in	76.2 mm
