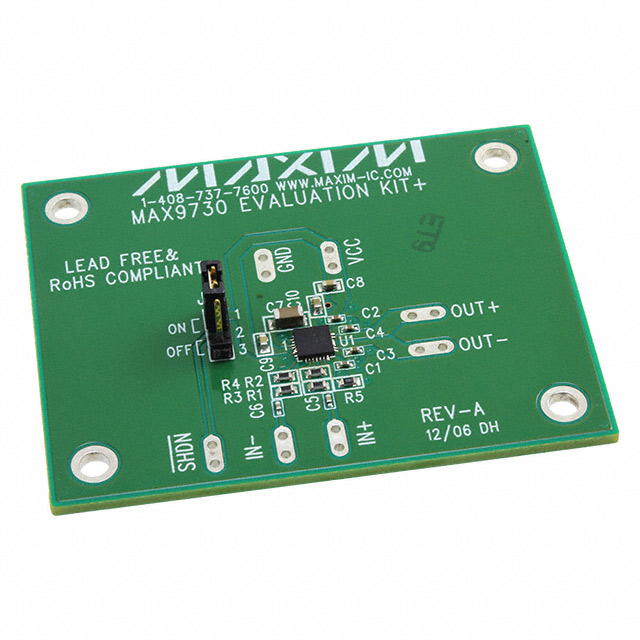

MAX9730EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9730
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9730EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9730
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9730EVKIT+ | MAX9730 Series |
|---|---|---|
| - | - | |
| Amplifier Type | Class G | Class G |
| Board Type | Fully Populated | Fully Populated |
| Features | - | Differential Inputs, Depop, Shutdown |
| Max Output Power x Channels @ Load | 2.4 W | 2.4 W |
| Max Output Power x Channels @ Load [custom] | 1 | 1 |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | 1-Channel (Mono) | 1-Channel (Mono) |
| Package / Case | - | 28-WFQFN Exposed Pad, 20-WFBGA, WLBGA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-TQFN (5x5), 28-TQFN (4x4), 20-WLP |
| Type | - | Class G |
| Utilized IC / Part | MAX9730 | MAX9730 |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.32 | |
MAX9730 Series
IC AMP CLASS G MONO 2.4W 28TQFN
| Part | Output Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load | Mounting Type | Type | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Features | Utilized IC / Part | Supplied Contents | Board Type | Amplifier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9730ETI+ | 1-Channel (Mono) | 28-WFQFN Exposed Pad | 85 °C | -40 °C | 1 | 2.4 W | Surface Mount | Class G | 28-TQFN (5x5) | 2.7 V | 5.5 V | Depop, Differential Inputs, Shutdown | ||||
Analog Devices Inc./Maxim Integrated MAX9730EVKIT+ | 1-Channel (Mono) | 1 | 2.4 W | 2.7 V | 5.5 V | MAX9730 | Board(s) | Fully Populated | Class G | |||||||
Analog Devices Inc./Maxim Integrated MAX9730ETI+T | 1-Channel (Mono) | 28-WFQFN Exposed Pad | 85 °C | -40 °C | 1 | 2.4 W | Surface Mount | Class G | 28-TQFN (4x4) | 2.7 V | 5.5 V | Depop, Differential Inputs, Shutdown | ||||
Analog Devices Inc./Maxim Integrated MAX9730EWP+TG45 | 1-Channel (Mono) | 20-WFBGA, WLBGA | 85 °C | -40 °C | 1 | 2.4 W | Surface Mount | Class G | 20-WLP | 2.7 V | 5.5 V | Depop, Differential Inputs, Shutdown | ||||
Analog Devices Inc./Maxim Integrated MAX9730ETI+T |
Description
General part information
MAX9730 Series
MAX9730 - 1-Channel (Mono) Output Class G Audio Amplifier Evaluation Board
