807-009-431-102

Active

EDAC Inc.

CONN EDGE SGL FML 9POS 0.156 TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-009-431-102

Active

EDAC Inc.

CONN EDGE SGL FML 9POS 0.156 TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-009-431-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	9
Number of Positions/Bay/Row [custom]	9
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

807-009 Series

...

Part	Gender	Read Out	Termination	Number of Positions	Material - Insulation	Color	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Termination Rows	Contact Type	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Mounting Type	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 807-009-431-102	Female	Single	Solder	9	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Single Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	1	0.156 in	3.96 mm	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Through Hole
EDAC Inc. 807-009-531-112	Female	Single	Solder	9	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Single Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	0.156 in	3.96 mm			Side Mount Opening Unthreaded	Through Hole	3.25 mm	0.128 in	10 Áin	0.25 Ám
EDAC Inc. 807-009-431-112	Female	Single	Solder	9	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Single Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	1	0.156 in	3.96 mm			Side Mount Opening Unthreaded	Through Hole	3.25 mm	0.128 in
EDAC Inc. 807-009-554-101	Female	Dual	Solder	18	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Dual Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	2	0.156 in	3.96 mm				Through Hole Right Angle			10 Áin	0.25 Ám
EDAC Inc. 807-009-559-112	Female	Single	Solder	9	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Single Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	0.156 in	3.96 mm			Side Mount Opening Unthreaded	Through Hole Right Angle	3.25 mm	0.128 in	10 Áin	0.25 Ám
EDAC Inc. 807-009-541-103	Female	Dual	Wire Wrap	18	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Dual Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	2	0.156 in	3.96 mm	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Through Hole			10 Áin	0.25 Ám
EDAC Inc. 807-009-558-107	Female	Single	Solder	9	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Single Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	1	0.156 in	3.96 mm			Flush Mount M3 Threaded Insert Top Opening	Through Hole Right Angle			10 Áin	0.25 Ám
EDAC Inc. 807-009-401-101	Female	Dual	Solder Eyelet(s)	18	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Dual Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	2	0.156 in	3.96 mm				Through Hole
EDAC Inc. 807-009-554-102	Female	Dual	Solder	18	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Dual Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	2	0.156 in	3.96 mm	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Through Hole Right Angle			10 Áin	0.25 Ám
EDAC Inc. 807-009-445-101	Female	Single	Wire Wrap	9	Diallyl Phthalate (DAP)	Green	9	125 °C	-40 °C	Non Specified - Single Edge	1	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	1	0.156 in	3.96 mm				Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 42.62

Description

General part information

807-009 Series

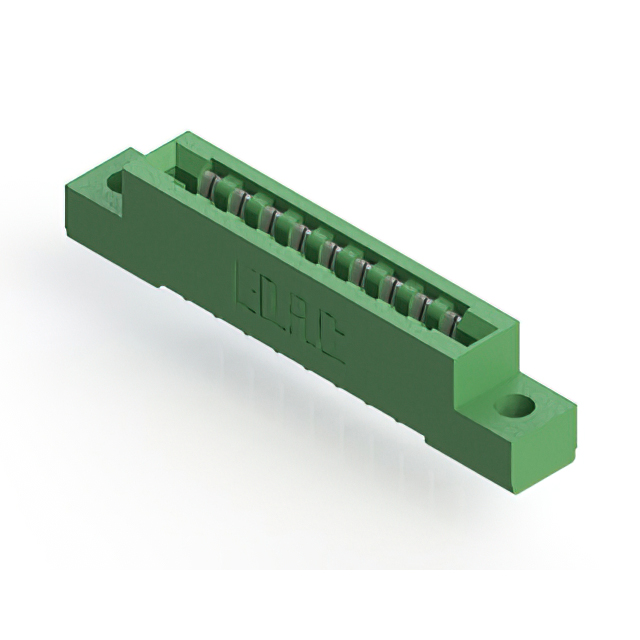

9 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
