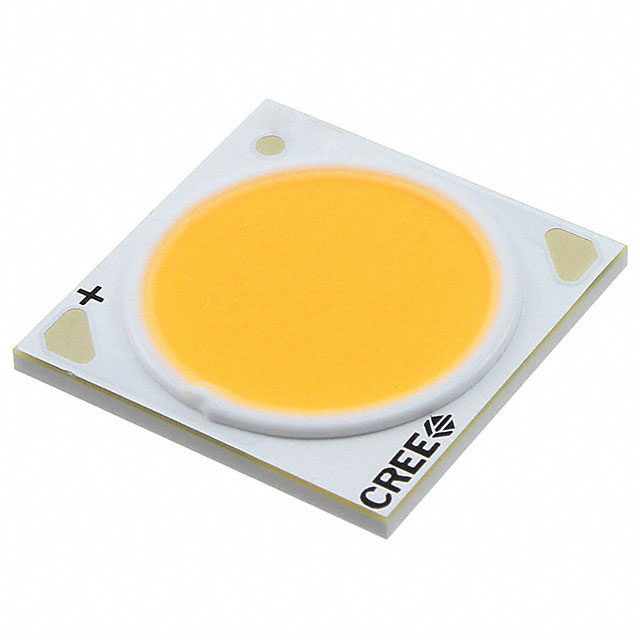

CXA1830-0000-000N0UR450G

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA1830-0000-000N0UR450G

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1830-0000-000N0UR450G

Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.4 A
Current - Test	800 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14 mm
Lumens/Watt @ Current - Test	93 lm/W
Luminous Flux @ Current/Temperature	2690 lm
Luminous Flux @ Current/Temperature [Max]	2780 lm
Luminous Flux @ Current/Temperature [Min]	2600 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXA1830 Series

Part	Color	Temperature - Test	Current - Max [Max]	Viewing Angle	CRI (Color Rendering Index)	Configuration	Lumens/Watt @ Current - Test	Lens Type	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Height [z]	Type	Current - Test
Cree LED CXA1830-0000-000N00S227F	Warm White	85 °C	1.4 A	115 °	80	Square	97 lm/W	Flat	4-Step MacAdam Ellipse	2700 K	37 V	14 mm	17.85 mm	17.85 mm	2990 lm	2885 lm	2780 lm	1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0HT450F	Cool White	85 °C	1.4 A	115 °	80	Square	120 lm/W	Flat		5000 K	37 V	14 mm	17.85 mm	17.85 mm		3560 lm		1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0HU250H	Cool White	85 °C	1.4 A	115 °	80	Square	129 lm/W	Flat		5000 K	37 V	14 mm	17.85 mm	17.85 mm		3818 lm		1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N00T20E5	Neutral White	85 °C	1.4 A	115 °		Square	112 lm/W	Flat		4000 K	37 V	14 mm	17.85 mm	17.85 mm		3320 lm		1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0YS235H	Warm White	85 °C	1.4 A	115 °	93	Square	97 lm/W	Flat		3500 K	37 V	14 mm	17.85 mm	17.85 mm		2885 lm		1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0UR450G	Cool White	85 °C	1.4 A	115 °	90	Square	93 lm/W	Flat			36 V	14 mm	17.85 mm	17.85 mm	2780 lm	2690 lm	2600 lm	1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0UR240F	Neutral White	85 °C	1.4 A	115 °		Square	85 lm/W	Flat		4000 K	37 V	14 mm	17.85 mm	17.85 mm	2600 lm	2510 lm	2420 lm	1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0HU265F	Cool White	85 °C	1.4 A	115 °	80	Square	129 lm/W	Flat		6500 K	37 V	14 mm	17.85 mm	17.85 mm		3818 lm		1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0UR440F	Neutral White	85 °C	1.4 A	115 °		Square	91 lm/W	Flat		4000 K	37 V	14 mm	17.85 mm	17.85 mm	2780 lm	2690 lm	2600 lm	1.7 mm	Chip On Board (COB)	800 mA
Cree LED CXA1830-0000-000N0HT457F	Cool White	85 °C	1.4 A	115 °	80	Square	120 lm/W	Flat		5700 K	37 V	14 mm	17.85 mm	17.85 mm		3560 lm		1.7 mm	Chip On Board (COB)	800 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.07
Newark	Each	100	$ 4.89
		250	$ 4.09
		500	$ 3.97

Description

General part information

CXA1830 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1830 White, Cool Square
