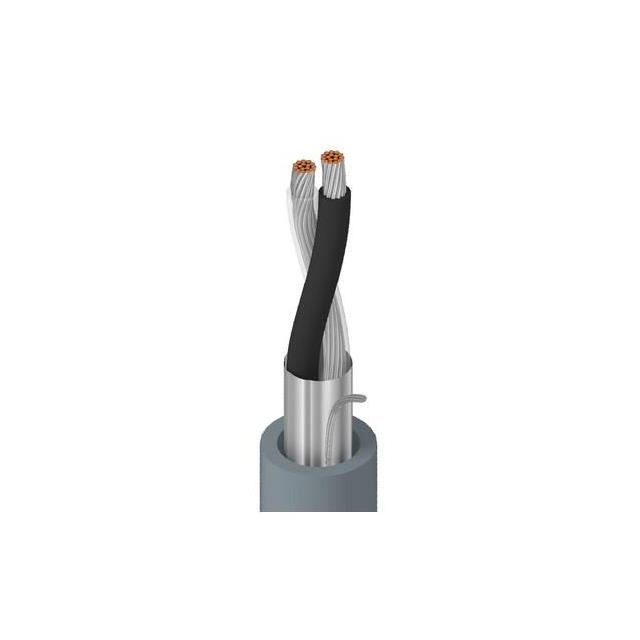

Specification	1883A 001N1000

Cable Type	Conductor, Multi
Conductor Insulation	Polypropylene (PP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32 AWG
Features	Drain Wire
Jacket (Insulation) Diameter	0.129 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.02 in
Jacket Color	Brown
Length	1000 ft
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, CMR, Style
Shield Coverage	100 %
Shield Material	Aluminum, Polyester
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

1883A Series

Part	Number of Conductors	Number of Conductors - Pair	Features	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Diameter	Operating Temperature (Max)	Operating Temperature (Min)	Ratings	Voltage	Cable Type	Usage	Length	Jacket Color	Conductor Insulation	Conductor Strand Gauge	Conductor Strand Count	Wire Gauge	Shield Type	Jacket (Insulation) Thickness	Shield Material	Shield Coverage
Belden Inc. 1883A 001N1000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Brown	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 0101000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Black	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 008N2000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	2000 ft	Gray	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 008U1000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Gray	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 008N1000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Gray	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 007U1000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Violet	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 002U1000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Red	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 010U1000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	Black	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A 0091000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	1000 ft	White	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
Belden Inc. 1883A N3UN2000	2	1	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	0.129 in	60 °C	-20 °C	CMR Style UL	300 V	Conductor Multi	Audio	2000 ft	Green	Polypropylene (PP)	32 AWG	7 Strands	24 AWG	Foil	0.02 in	Aluminum Polyester	100 %
