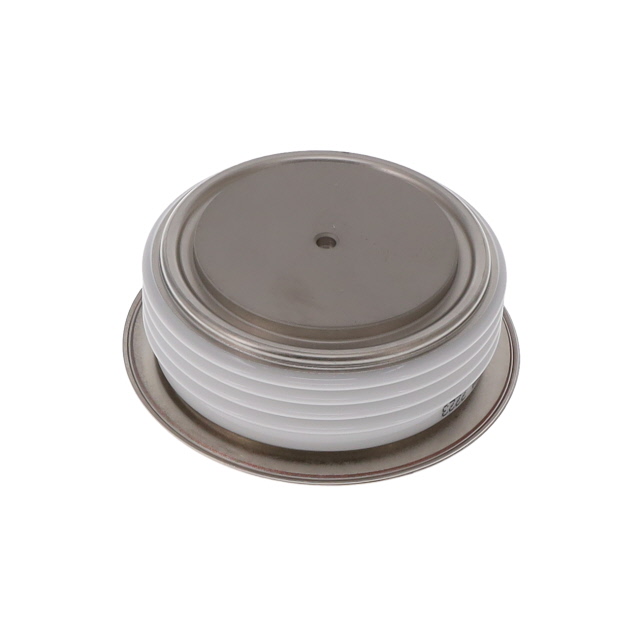

M1494NC250

Active

IXYS

DIODE GEN PURP 2.5KV 1494A W5

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 2.5KV 1494A W5

Technical Specifications

Parameters and characteristics for this part

Specification	M1494NC250

Current - Average Rectified (Io)	1494 A
Current - Reverse Leakage @ Vr	85 mA
Mounting Type	Clamp On
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	DO-200AC, K-PUK
Reverse Recovery Time (trr)	3.9 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	W5
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	2500 V
Voltage - Forward (Vf) (Max) @ If	2.34 V

Part	Package / Case	Mounting Type	Supplier Device Package	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Speed	Speed	Technology	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr
IXYS M1494NK250	B-PUK DO-200AB	Clamp On	WD8	3.9 µs	2500 V	1975 A	Standard Recovery >500ns	200 mA	Standard	1.15 V
IXYS M1494NC250	DO-200AC K-PUK	Clamp On	W5	3.9 µs	2500 V	1494 A	Standard Recovery >500ns	200 mA	Standard	2.34 V	125 °C	-40 °C	85 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 2500 V 1494A Clamp On W5
