FVS.03.250.CLCE31

Active

LEMO

CONN INLINE PLUG COAX PIN CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN INLINE PLUG COAX PIN CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN INLINE PLUG COAX PIN CRIMP

Part	Body Finish	Center Contact Material	Shield Termination	Mating Cycles	Ingress Protection	Dielectric Material	Connector Type	Mounting Type	Contact Termination	Frequency - Max [Max]	Housing Color	Center Contact Plating	Fastening Type	Impedance	Body Material	Connector Style	Cable Group	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]
LEMO FVS.03.250.CLCE24	Chrome	Brass	Crimp	1000	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Male Pin, Plug	Free Hanging (In-Line)	Crimp	500 MHz	Silver	Gold	Push-Pull	50 Ohms	Brass	Coaxial	196	RG-178	-20 C	200 °C
LEMO FVS.03.250.CLCE31	Chrome	Brass	Crimp	1000	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Male Pin, Plug	Free Hanging (In-Line)	Crimp	500 MHz	Silver	Gold	Push-Pull	50 Ohms	Brass	Coaxial		188A, 316, RG-174A	-20 C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

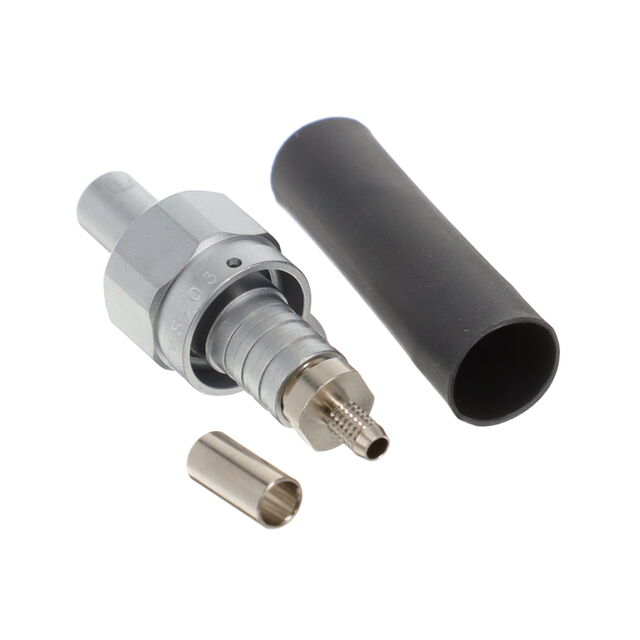

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
