132231RP

Active

Amphenol RF

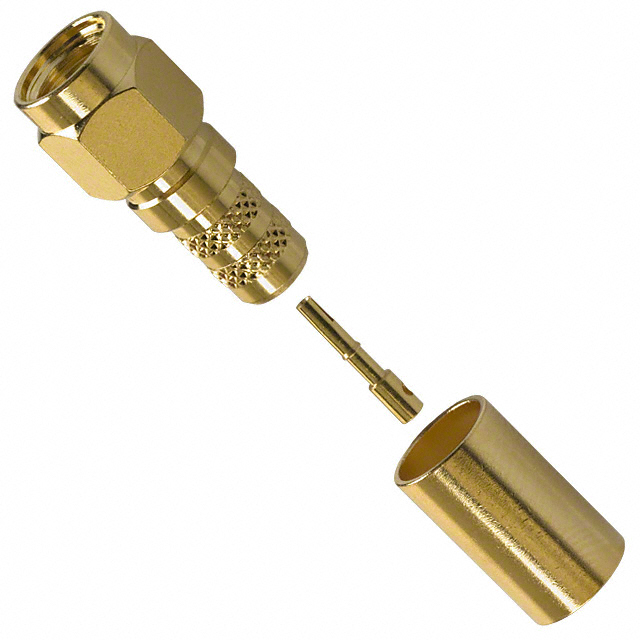

CONN SMA 0HZ TO 12.4GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA 0HZ TO 12.4GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	132231RP

Body Finish	Gold
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Cable Group	Mating Cycles	Connector Type	Connector Style	Shield Termination	Center Contact Plating	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Material	Voltage Rating	Mounting Type	Includes	Contact Termination	Number of Ports	Impedance	Frequency - Max [Max]	Housing Color
Amphenol RF 132231RP	Belden 9258 LMR-240 RG-8X	500	Female Socket Plug	RP-SMA	Crimp	Gold	Polytetrafluoroethylene (PTFE)	Brass	-65 ░C	165 °C	Gold	Beryllium Copper	375 V	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Solder	1	50 Ohms	12.4 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
