012520WF037
ActiveEssentra Access Solutions

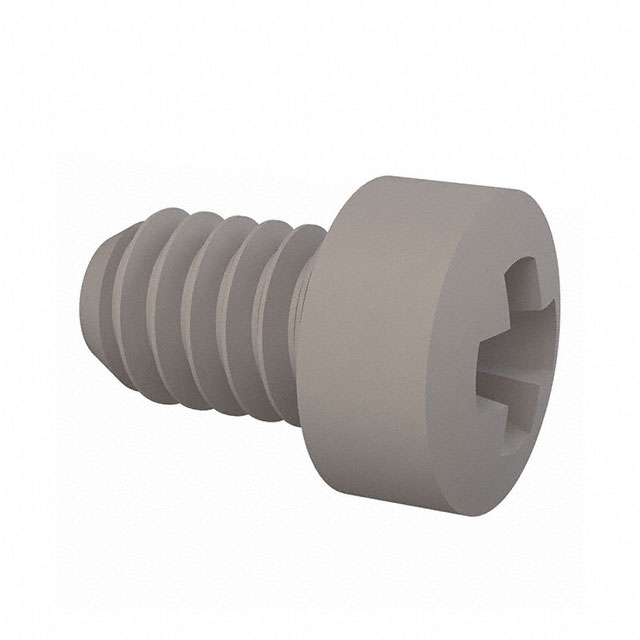

FILLISTER PHILLIPS SCREW 1/4-20
Deep-Dive with AI
Search across all available documentation for this part.
012520WF037
ActiveEssentra Access Solutions
FILLISTER PHILLIPS SCREW 1/4-20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 012520WF037 |
|---|---|
| Drive Type | Phillips |
| Length - Below Head | 0.375 " |
| Length - Below Head | 9.53 mm |
| Length - Below Head | 0.375 " |
| Length - Overall [x] | 19.89 mm |
| Length - Overall [x] | 0.783 in |
| Material | Nylon |
| Screw Head Type | Pan Head |
| Thread Size | 1/4"-20 |
| Type | Machine Screw |
012520WF Series
| Part | Thread Size | Screw Head Type | Length - Overall [x] | Length - Overall [x] | Drive Type | Material | Type | Length - Below Head [x] | Length - Below Head | Length - Below Head | Length - Below Head | Length - Overall | Length - Overall | Length - Below Head [x] | Head Diameter [diameter] | Head Diameter [diameter] | Head Height | Head Height | Length - Below Head [custom] | Length - Below Head [custom] | Length - Below Head |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | 1/4"-20 | Pan Head | 1.908 in | 48.46 mm | Phillips | Nylon | Machine Screw | 1.5 in | 38.1 mm | ||||||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | 1.158 in | 29.41 mm | Phillips | Nylon | Machine Screw | 19.05 mm | 0.75 " | 0.75 " | |||||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | Phillips | Nylon | Machine Screw | 15.88 mm | 0.625 in | 0.625 in | 26.24 mm | 1.033 in | |||||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | 0.783 in | 19.89 mm | Phillips | Nylon | Machine Screw | 0.375 " | 9.53 mm | 0.375 " | |||||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | 2.158 in | 54.81 mm | Phillips | Nylon | Machine Screw | 1.75 in | 44.45 mm | ||||||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | 1.283 " | 32.59 mm | Phillips | Nylon | Machine Screw | 0.875 in | 0.875 in | 22.23 mm | |||||||||||
Essentra Access Solutions | 1/4"-20 | Binding Head | Phillips | Nylon | 25.4 mm | 1 in | 9.93 mm | 0.391 " | 0.205 in | 5.21 mm | |||||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | Phillips | Nylon | Machine Screw | 7.94 mm | 0.313 in | ||||||||||||||
Essentra Access Solutions | 1/4"-20 | Binding Head | 0.705 in | 17.91 mm | Phillips | Nylon | 12.7 mm | 0.5 in | 9.93 mm | 0.391 " | 0.205 in | 5.21 mm | 1/2 | ||||||||
Essentra Access Solutions | 1/4"-20 | Pan Head | 1.658 in | 42.11 mm | Phillips | Nylon | Machine Screw | 1.25 in | 31.75 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.07 | |
Description
General part information
012520WF Series
1/4"-20 Pan Head Machine Screw Phillips Drive Nylon
Documents
Technical documentation and resources
No documents available
