ACA-20RM-5-AC3-RL-C

Active

Murata Power Solutions Inc.

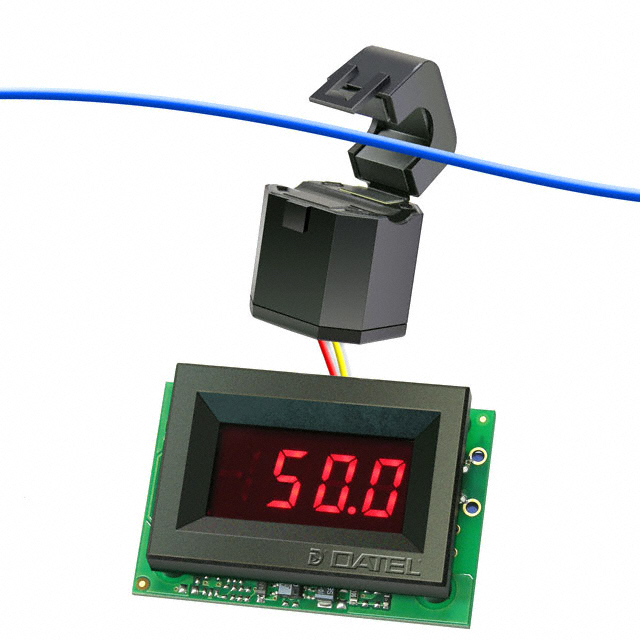

AMMETER 0-30A LED PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACA-20RM-5-AC3-RL-C

Active

Murata Power Solutions Inc.

AMMETER 0-30A LED PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACA-20RM-5-AC3-RL-C	ACA-20RM Series

	-	-
Display Characters - Height	9.4 mm	9.4 mm
Display Characters - Height	0.37 in	0.37 in
Display Type	LED - Red Characters	LED - Red Characters
Features	Built In Current Transformer (Primary)	Built In Current Transformer (Primary)
Measuring Range [Max]	30 A	19.99 - 199.9 mA
Measuring Range [Min]	0 A	0 A
Measuring Type	Current	Current
Mounting Type	Panel Mount - Bezel	Panel Mount - Bezel
Number of Characters Per Row	3.5	3.5
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [x]	33.93 mm	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm	21.29 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Ammeter	Ammeter
Voltage - Supply [Max]	140 VAC	140 - 264 VAC
Voltage - Supply [Min]	85 VAC	85 - 170 VAC
Weight	43.09 g	30.84 - 59.42 g
Weight	0.095 lb	0.068 - 0.131 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

ACA-20RM Series

AMMETER 0-199.9MA LED PANEL MT

Part	Display Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Measuring Type	Display Characters - Height	Display Characters - Height	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Type	Measuring Range [Min]	Measuring Range [Max]	Number of Characters Per Row	Mounting Type	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. ACA-20RM-0-AC4-RL-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	264 VAC	170 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	199.9 mA	3.5	Panel Mount - Bezel	0.068 lb	30.84 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-4-AC3-RL-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	140 VAC	85 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	50 A	3.5	Panel Mount - Bezel	0.131 lb	59.42 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-5-AC3-RL-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	140 VAC	85 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	30 A	3.5	Panel Mount - Bezel	0.095 lb	43.09 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-4-AC3-RL-C
Murata Power Solutions Inc. ACA-20RM-5-AC4-RL-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	264 VAC	170 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	30 A	3.5	Panel Mount - Bezel	0.095 lb	43.09 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-2-AC4-RL-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	264 VAC	170 VAC	Built In Current Transformer (Primary)	Ammeter	0	19.99 A	3.5	Panel Mount - Bezel	0.068 lb	30.84 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-4-AC4-RL-ALM-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	264 VAC	170 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	50 A	3.5	Panel Mount - Bezel	0.131 lb	59.42 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-4-AC4-RL-C
Murata Power Solutions Inc. ACA-20RM-5-AC3-RL-ALM-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	140 VAC	85 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	30 A	3.5	Panel Mount - Bezel	0.095 lb	43.09 g	60 °C	0 °C
Murata Power Solutions Inc. ACA-20RM-4-AC4-RL-C	LED - Red Characters	Screw Terminal	33.93 mm	21.29 mm	Current	9.4 mm	0.37 in	264 VAC	170 VAC	Built In Current Transformer (Primary)	Ammeter	0 A	50 A	3.5	Panel Mount - Bezel	0.131 lb	59.42 g	60 °C	0 °C

Description

General part information

ACA-20RM Series

Ammeter LED - Red Characters Display Panel Mount - Bezel
