3039-0-00-15-00-00-03-4
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
3039-0-00-15-00-00-03-4
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3039-0-00-15-00-00-03-4 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.029 in |
| Flange Diameter [diameter] | 0.74 mm |
| Insulation | Non-Insulated |
| Length - Above Flange | 4.32 mm |
| Length - Above Flange | 0.17 in |
| Length - Overall [x] | 6.73 mm |
| Length - Overall [x] | 0.265 " |
| Mounting Hole Diameter [diameter] | 0.64 mm |
| Mounting Hole Diameter [diameter] | 0.025 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.38 mm |
| Pin Size - Above Flange [diameter] | 0.015 in |
| Pin Size - Below Flange [diameter] | 0.28 mm |
| Pin Size - Below Flange [diameter] | 0.011 " |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.41 | |||
| 3000 | $ 0.37 | |||
Description
General part information
3039-0 Series

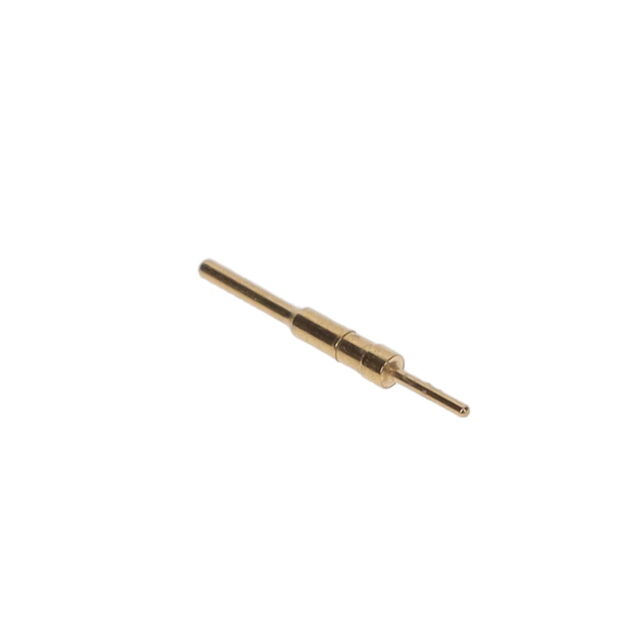

PC Pin Terminal Connector Through Hole Gold 0.015" (0.38mm) Dia
