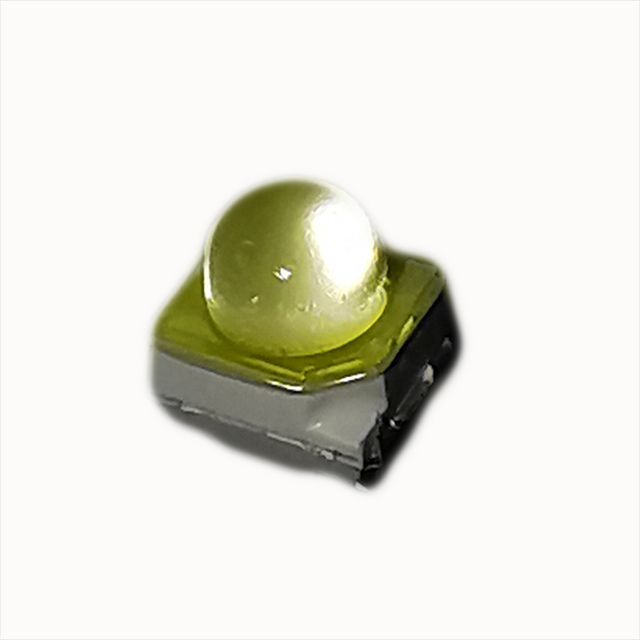

QBLP670D-IW-WW

Active

QT Brightek (QTB)

LED WARM WHITE CLEAR 2PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP670D-IW-WW

Active

QT Brightek (QTB)

LED WARM WHITE CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP670D-IW-WW	QBLP670 Series

Color	White, Warm	Cool, White, Blue, Yellow, Green, Warm, Red, Neutral
Configuration	Standard	Standard
Current - DC Forward (If) (Max)	-	100 mA
Current - Test	20 mA	5 - 20 mA
Height (Max) [Max] [z]	3.8 mm	2.1 - 3.8 mm
Lens Color	Colorless	Colorless, Yellow
Lens Size [diameter]	2.4 mm	2.4 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	6800 mcd	28 - 9500 mcd
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	80 °C
Operating Temperature	-	-40 °C
Orientation	-	Top View
Package / Case	2-PLCC	2-PLCC, 2-LCC
Radiant Intensity (Ie) Min @ If	-	0.6 mW/sr
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	2-PLCC	2-PLCC
Type	-	Infrared (IR)
Viewing Angle	30 °	30 - 120 °
Voltage - Forward (Vf) (Typ)	3.1 V	1.7 - 3.3 V
Wavelength	-	880 nm
Wavelength - Dominant	3000 K	465 - 6500 K
Wavelength - Dominant	-	4000 - 9000 K

QBLP670 Series

LED COOL WHITE CLEAR 2PLCC SMD

Part	Lens Transparency	Configuration	Height (Max) [Max] [z]	Mounting Type	Lens Style	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Current - Test	Lens Color	Supplier Device Package	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Color	Lens Size [diameter]	Viewing Angle
QT Brightek (QTB) QBLP670D-IW-CW-2897	Clear	Standard	3.8 mm	Surface Mount	Round with Domed Top	2.8 V	6500 K	20 mA	Colorless	2-PLCC	8000 mcd	2.8 mm	3.2 mm	2-PLCC	Cool, White	2.4 mm	30 °
QT Brightek (QTB) QBLP670-IB-2897	Clear	Standard	2.1 mm	Surface Mount		3.1 V	470 nm	20 mA	Colorless	2-PLCC	300 mcd	2.8 mm	3.2 mm	2-PLCC	Blue	2.4 mm	120 °
QT Brightek (QTB) QBLP670-O-2897	Clear	Standard	2.1 mm	Surface Mount		2 V	605 nm	20 mA	Colorless	2-PLCC	740 mcd	2.8 mm	3.2 mm	2-PLCC		2.4 mm	120 °
QT Brightek (QTB) QBLP670-Y-2897	Clear	Standard	2.1 mm	Surface Mount		2 V	590 nm	20 mA	Colorless	2-PLCC	740 mcd	2.8 mm	3.2 mm	2-PLCC	Yellow	2.4 mm	120 °
QT Brightek (QTB) QBLP670-AG1	Clear	Standard	2.1 mm	Surface Mount		2 V	569 nm	20 mA	Colorless	2-PLCC	85 mcd	2.8 mm	3.2 mm	2-PLCC	Green	2.4 mm	120 °
QT Brightek (QTB) QBLP670-YG1	Clear	Standard	2.1 mm	Surface Mount		2.1 V	570 nm	20 mA	Colorless	2-PLCC	28 mcd	2.8 mm	3.2 mm	2-PLCC	Green	2.4 mm	120 °
QT Brightek (QTB) QBLP670-IW5	Diffused	Standard	2.1 mm	Surface Mount		2.7 V		5 mA	Yellow	2-PLCC	580 mcd	2.8 mm	3.2 mm	2-PLCC	White	2.4 mm	120 °
QT Brightek (QTB) QBLP670D-IW-WW-2897	Clear	Standard	3.8 mm	Surface Mount	Round with Domed Top	2.8 V	3000 K	20 mA	Colorless	2-PLCC	7500 mcd	2.8 mm	3.2 mm	2-PLCC	Warm, White	2.4 mm	30 °
QT Brightek (QTB) QBLP670-IG-2897	Clear	Standard	2.1 mm	Surface Mount		3.3 V	525 nm	20 mA	Colorless	2-PLCC	1400 mcd	2.8 mm	3.2 mm	2-PLCC	Green	2.4 mm	120 °
QT Brightek (QTB) QBLP670-IB	Clear	Standard	2.1 mm	Surface Mount		3.1 V	465 nm	20 mA	Colorless	2-PLCC	210 mcd	2.8 mm	3.2 mm	2-PLCC	Blue	2.4 mm	120 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.50
		10	$ 0.33
		100	$ 0.22
		1000	$ 0.17
	Digi-Reel®	1	$ 0.50
		10	$ 0.33
		100	$ 0.22
		1000	$ 0.17
	Tape & Reel (TR)	2000	$ 0.13

Description

General part information

QBLP670 Series

White, Warm 3000K LED Indication - Discrete 3.1V 2-PLCC
