QBLP670-Y-2897

Active

QT Brightek (QTB)

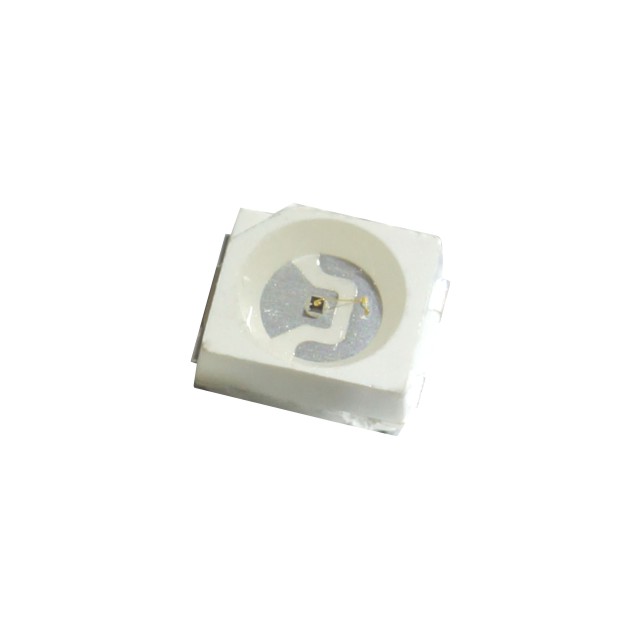

LED YELLOW CLEAR 2PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP670-Y-2897

Active

QT Brightek (QTB)

LED YELLOW CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.14
		6000	$ 0.12
		10000	$ 0.12
		50000	$ 0.11

Description

General part information

QBLP670 Series

Yellow 590nm LED Indication - Discrete 2V 2-PLCC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP670-Y-2897	QBLP670 Series

Color	Yellow	Cool, White, Blue, Yellow, Green, Warm, Red, Neutral
Configuration	Standard	Standard
Current - DC Forward (If) (Max)	-	100 mA
Current - Test	20 mA	5 - 20 mA
Height (Max) [Max] [z]	2.1 mm	2.1 - 3.8 mm
Lens Color	Colorless	Colorless, Yellow
Lens Size [diameter]	2.4 mm	2.4 mm
Lens Style	-	Round with Domed Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	740 mcd	28 - 9500 mcd
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	80 °C
Operating Temperature	-	-40 °C
Orientation	-	Top View
Package / Case	2-PLCC	2-PLCC, 2-LCC
Radiant Intensity (Ie) Min @ If	-	0.6 mW/sr
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	2-PLCC	2-PLCC
Type	-	Infrared (IR)
Viewing Angle	120 °	30 - 120 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 3.3 V
Wavelength	-	880 nm
Wavelength - Dominant	590 nm	465 - 6500 K
Wavelength - Dominant	-	4000 - 9000 K

QBLP670 Series

LED COOL WHITE CLEAR 2PLCC SMD

Part	Lens Transparency	Configuration	Height (Max) [Max] [z]	Mounting Type	Lens Style	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Current - Test	Lens Color	Supplier Device Package	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Color	Lens Size [diameter]	Viewing Angle
QT Brightek (QTB) QBLP670D-IW-CW-2897	Clear	Standard	3.8 mm	Surface Mount	Round with Domed Top	2.8 V	6500 K	20 mA	Colorless	2-PLCC	8000 mcd	2.8 mm	3.2 mm	2-PLCC	Cool, White	2.4 mm	30 °
QT Brightek (QTB) QBLP670-IB-2897	Clear	Standard	2.1 mm	Surface Mount		3.1 V	470 nm	20 mA	Colorless	2-PLCC	300 mcd	2.8 mm	3.2 mm	2-PLCC	Blue	2.4 mm	120 °
QT Brightek (QTB) QBLP670-O-2897	Clear	Standard	2.1 mm	Surface Mount		2 V	605 nm	20 mA	Colorless	2-PLCC	740 mcd	2.8 mm	3.2 mm	2-PLCC		2.4 mm	120 °
QT Brightek (QTB) QBLP670-Y-2897	Clear	Standard	2.1 mm	Surface Mount		2 V	590 nm	20 mA	Colorless	2-PLCC	740 mcd	2.8 mm	3.2 mm	2-PLCC	Yellow	2.4 mm	120 °
QT Brightek (QTB) QBLP670-AG1	Clear	Standard	2.1 mm	Surface Mount		2 V	569 nm	20 mA	Colorless	2-PLCC	85 mcd	2.8 mm	3.2 mm	2-PLCC	Green	2.4 mm	120 °
QT Brightek (QTB) QBLP670-YG1	Clear	Standard	2.1 mm	Surface Mount		2.1 V	570 nm	20 mA	Colorless	2-PLCC	28 mcd	2.8 mm	3.2 mm	2-PLCC	Green	2.4 mm	120 °
QT Brightek (QTB) QBLP670-IW5	Diffused	Standard	2.1 mm	Surface Mount		2.7 V		5 mA	Yellow	2-PLCC	580 mcd	2.8 mm	3.2 mm	2-PLCC	White	2.4 mm	120 °
QT Brightek (QTB) QBLP670D-IW-WW-2897	Clear	Standard	3.8 mm	Surface Mount	Round with Domed Top	2.8 V	3000 K	20 mA	Colorless	2-PLCC	7500 mcd	2.8 mm	3.2 mm	2-PLCC	Warm, White	2.4 mm	30 °
QT Brightek (QTB) QBLP670-IG-2897	Clear	Standard	2.1 mm	Surface Mount		3.3 V	525 nm	20 mA	Colorless	2-PLCC	1400 mcd	2.8 mm	3.2 mm	2-PLCC	Green	2.4 mm	120 °
QT Brightek (QTB) QBLP670-IB	Clear	Standard	2.1 mm	Surface Mount		3.1 V	465 nm	20 mA	Colorless	2-PLCC	210 mcd	2.8 mm	3.2 mm	2-PLCC	Blue	2.4 mm	120 °
