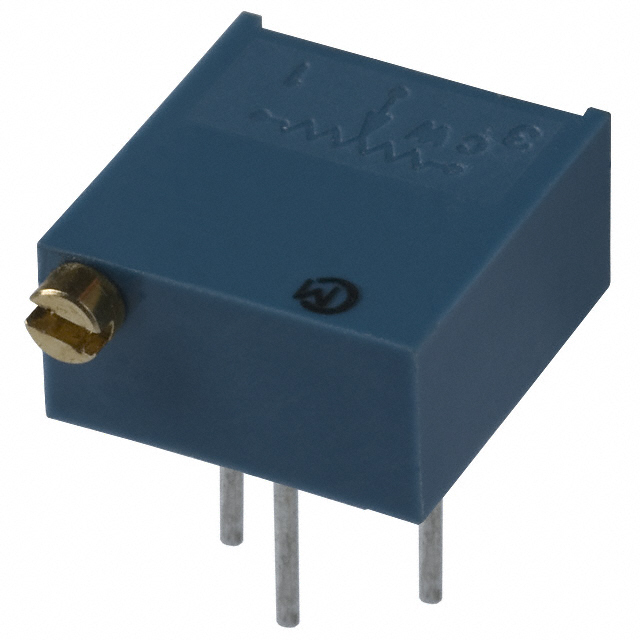

PV36P502C01B00
ActiveBourns Inc.
RES CERMET TRIMMER 5K OHM 10% 0.5W(1/2W) 25(ELEC)TURNS 2.19MM (9.53 X 11.55 X 4.83MM) PIN THRU-HOLE TUBE
Deep-Dive with AI
Search across all available documentation for this part.
PV36P502C01B00
ActiveBourns Inc.
RES CERMET TRIMMER 5K OHM 10% 0.5W(1/2W) 25(ELEC)TURNS 2.19MM (9.53 X 11.55 X 4.83MM) PIN THRU-HOLE TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV36P502C01B00 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 25 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 5 kOhms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 9.6 mm |
| Size / Dimension [x] | 0.378 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.03 | |
| 10 | $ 2.67 | |||
| 25 | $ 2.39 | |||
| 50 | $ 2.30 | |||
| 100 | $ 2.21 | |||
| 300 | $ 2.11 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.65 | |||
| 5000 | $ 1.38 | |||
Description
General part information
PV36P Series
5 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25 Turn Side Adjustment
Documents
Technical documentation and resources
No documents available
