2910511
ActivePhoenix Contact

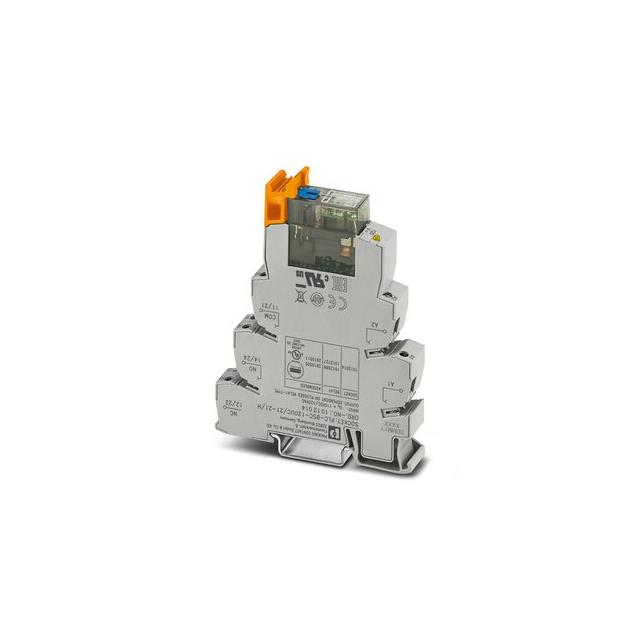

RELAY GEN PURPOSE DPDT 50MA 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2910511
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 50MA 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2910511 | 29105 Series |
|---|---|---|
| Approval Agency | cULus, DNV, UL, EAC | UKCA, CE, cULus, DNV, UL, EAC |
| Coil Current | 5 mA | 5 - 19 mA |
| Coil Resistance | 24 kOhms | 2.526 - 1333 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 24 - 230 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 50 mA | 6 - 50 A |
| Features | Lighted Indicator, Socket Included | Diode, Test Button, Lighted Indicator, Socket Included, Mechanical Indicator |
| Mounting Type | DIN Rail | DIN Rail |
| Must Operate Voltage | 96 VAC | 40.3 - 207 VAC |
| Operate Time | 15 ms | 6 - 15 ms |
| Operating Temperature [Max] | 55 °C | 50 - 60 °C |
| Operating Temperature [Min] | -20 C | -40 - -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 8 - 15 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VAC |
| Termination Style | Screw Terminal | Spring Terminal, Screw Terminal |
29105 Series
RELAY MODULE, DPDT, 0.05A, 24V, DIN RAIL
| Part | Release Time | Mounting Type | Termination Style | Features | Contact Form | Coil Voltage | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Relay Type | Contact Material | Coil Resistance | Approval Agency | Contact Rating (Current) | Coil Type | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2910524 | 10 ms | DIN Rail | Spring Terminal | Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | DPDT (2 Form C) | 24 VDC | 10 ms | -20 C | 60 °C | 250 VAC, 250 VDC | General Purpose | Gold (Au), Silver Nickel (AgNi) | 1333 Ohms | CE, UKCA | 6 A | Non Latching | 18 mA | |
Phoenix Contact 2910518 | 8 ms | DIN Rail | Screw Terminal | Diode, Lighted Indicator, Socket Included, Test Button | SPDT (1 Form C) | 230 VAC | 6 ms | -40 °C | 50 °C | 250 VAC, 250 VDC | General Purpose | Silver Nickel (AgNi) | 46 kOhms | CE, UKCA | 10 A | Non Latching | 5 mA | 207 VAC |
Phoenix Contact 2910504 | 10 ms | DIN Rail | Screw Terminal | Diode, Socket Included | DPDT (2 Form C) | 48 VDC | 6 ms | -20 C | 60 °C | 250 VAC, 250 VDC | General Purpose | Silver Nickel (AgNi) | 2.526 kOhms | CE, UKCA | 6 A | Non Latching | 19 mA | 40.3 VDC |
Phoenix Contact 2910517 | 8 ms | DIN Rail | Screw Terminal | Diode, Lighted Indicator, Socket Included, Test Button | SPDT (1 Form C) | 120 VAC, 120 VDC | 6 ms | -40 °C | 55 °C | 250 VAC, 250 VDC | General Purpose | Silver Nickel (AgNi) | 24 kOhms | CE, UKCA | 10 A | Non Latching | 5 mA | 96 VAC |
Phoenix Contact 2910515 | 15 ms | DIN Rail | Screw Terminal | Lighted Indicator, Socket Included | SPDT (1 Form C) | 24 VAC | 15 ms | -40 °C | 60 °C | 250 VAC, 250 VDC | General Purpose | Silver Nickel (AgNi) | 1333 Ohms | CE, UKCA | 10 A | Non Latching | 18 mA | |
Phoenix Contact 2910531 | 15 ms | DIN Rail | Spring Terminal | Diode, Lighted Indicator, Socket Included, Test Button | SPDT (1 Form C) | 24 VAC | 15 ms | -40 °C | 60 °C | 250 VAC, 250 VDC | General Purpose | Silver Nickel (AgNi) | 1333 Ohms | CE, UKCA | 10 A | Non Latching | 18 mA | |
Phoenix Contact 2910526 | 15 ms | DIN Rail | Spring Terminal | Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | DPDT (2 Form C) | 24 VAC | 15 ms | -20 C | 60 °C | 250 VAC, 250 VDC | General Purpose | Gold (Au), Silver Nickel (AgNi) | 1333 Ohms | CE, UKCA | 6 A | Non Latching | 18 mA | |
Phoenix Contact 2910511 | 15 ms | DIN Rail | Screw Terminal | Lighted Indicator, Socket Included | DPDT (2 Form C) | 120 VAC, 120 VDC | 15 ms | -20 C | 55 °C | 30 VAC, 36 VDC | General Purpose | Gold (Au), Silver Nickel (AgNi) | 24 kOhms | cULus, DNV, EAC, UL | 50 mA | Non Latching | 5 mA | 96 VAC |
Phoenix Contact 2910508 | 15 ms | DIN Rail | Screw Terminal | Lighted Indicator, Socket Included | DPDT (2 Form C) | 24 VAC | 15 ms | -20 C | 60 °C | 30 VAC, 36 VDC | General Purpose | Gold (Au), Silver Nickel (AgNi) | 1333 Ohms | cULus, DNV, EAC, UL | 50 mA | Non Latching | 18 mA | |
Phoenix Contact 2910533 | 8 ms | DIN Rail | Spring Terminal | Diode, Lighted Indicator, Socket Included, Test Button | SPDT (1 Form C) | 120 VAC, 120 VDC | 6 ms | -40 °C | 55 °C | 250 VAC, 250 VDC | General Purpose | Silver Nickel (AgNi) | 24 kOhms | CE, UKCA | 10 A | Non Latching | 5 mA | 96 VAC |
